GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-28 Section 8-4 - Mechanicals
8-4-2 LH Side Cover (FRU No: 5350992)
This is a description on how to remove and replace the Left Cover.
8-4-2-1 Tools
• Common Torx screwdrivers
8-4-2-2 FRU BOM
This FRU Kit P/N: 5350992 consists of following parts.
8-4-2-3 Needed Manpower
• 1 person, 15 minutes
8-4-2-4 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-2-5 Removal Procedure
1.) Remove the screw cap of four places (1,2,3,4,)
2.) Unscrew 4 screws (1,2,3,4).
3.) Remove the Left cover in the direction as shown in the figure below.

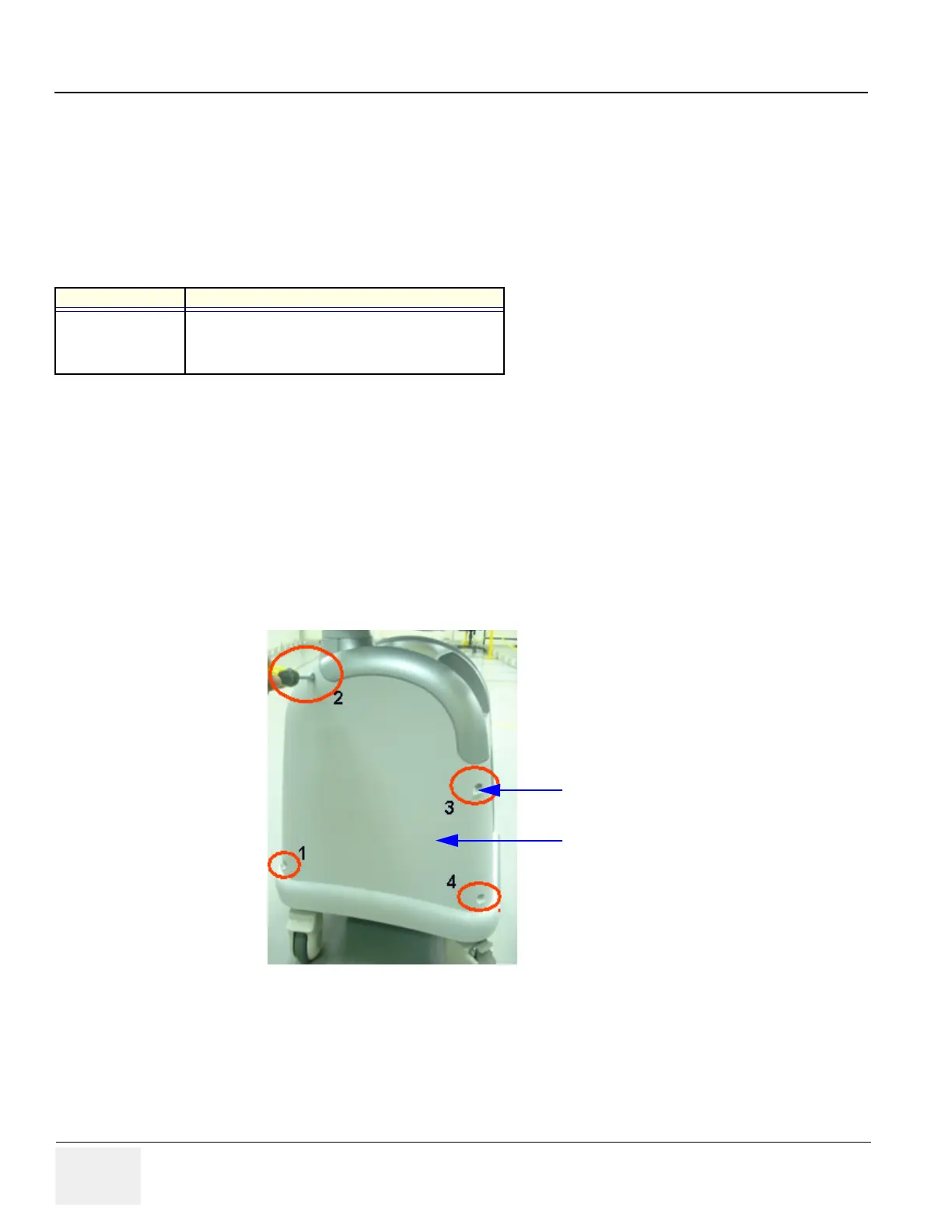

Figure 8-23 Left Cover
8-4-2-6 Mounting procedure
1.) Install the new parts in the reverse order of removal.
Part No Description
5310088 LH_Side_Cover_Lakshya
5310094 Side_Screw_Cap_Lakshya
5196598 Captive fasteners- M4 X 12 CAPTIVE
Screw cap
LH-Cover
