GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-34 Section 8-4 - Mechanicals

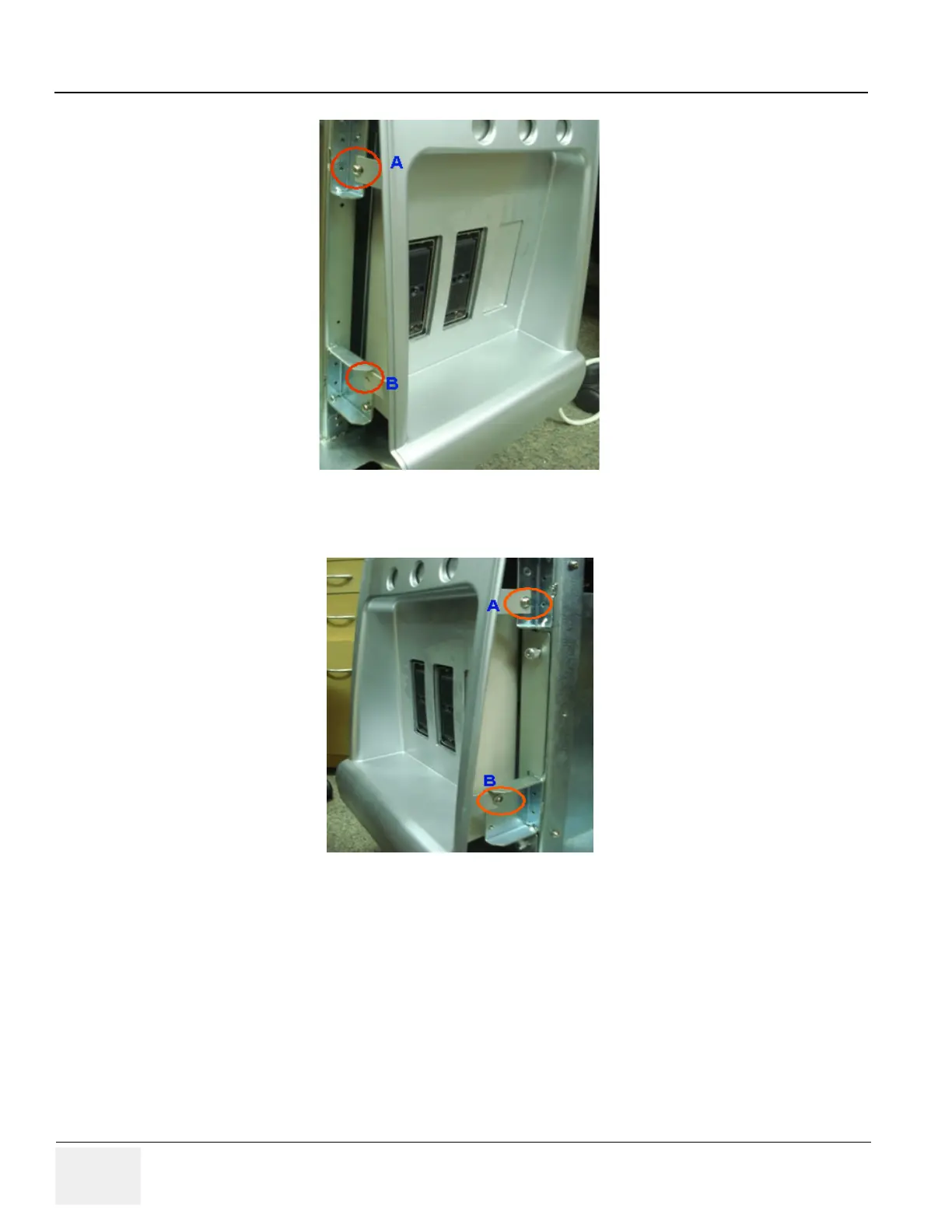

3)Remove the two screws (A,B) LH-side of the system. Refer Figure 8-28 on page 8-34
Figure 8-28 Removing side screws of front cover
4) Remove the two screws (A,B) RH-side of the system. Refer Figure 8-29 on page 8-34
Figure 8-29 Removing side screws of front cover
8-4-4-6 Mounting procedure
1.) Install the new parts in the reverse order of removal.
