3-6-4-4 Connect peripherals
A.) Connecting B/W printer UP-D897, Mitsubishi P93D or Color printer UP-D23MD to the system.
Only B/W Printer UP-D897 can be mounted in Front Utility area tray as shown in the figure below.

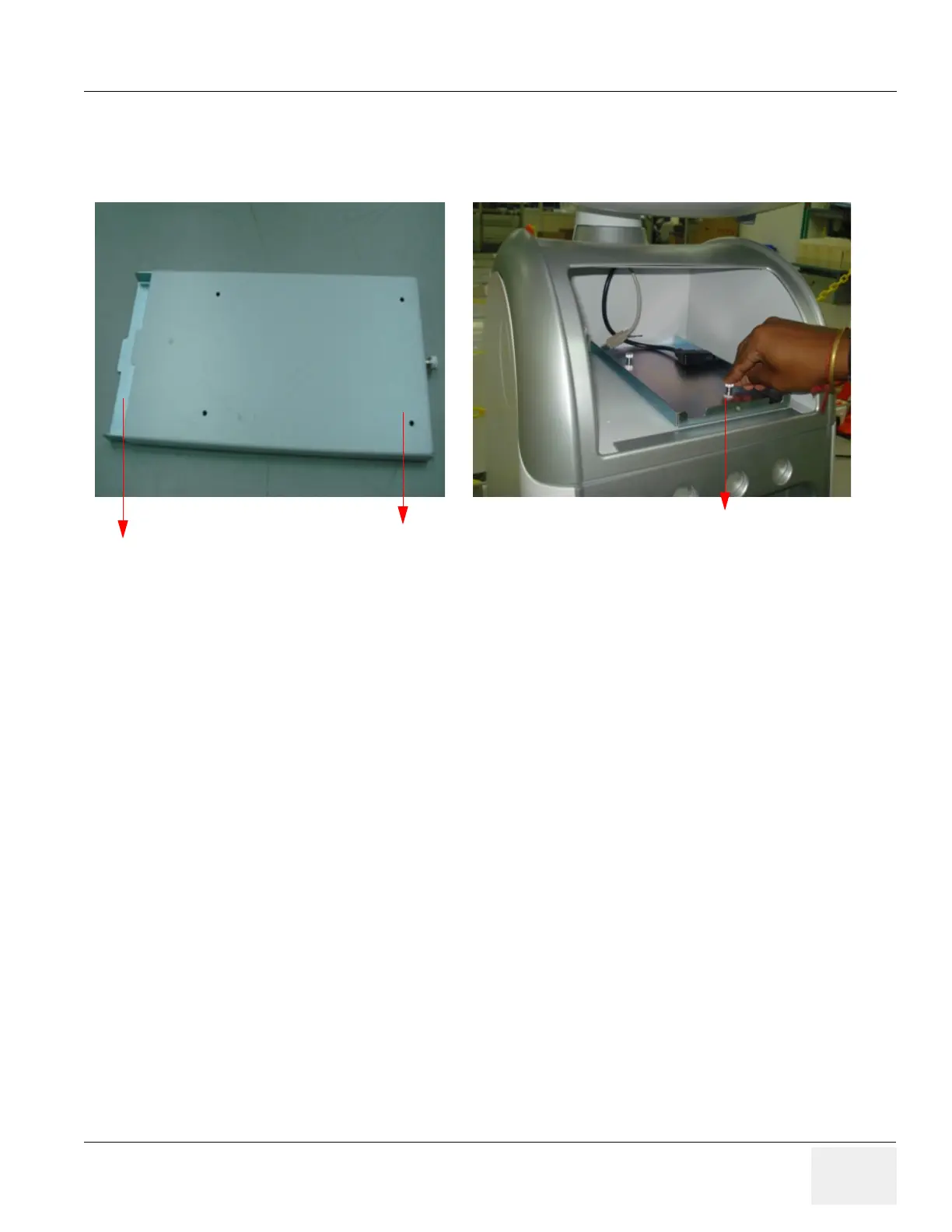

Figure 3-12 Connect B/W printer Tray to the system
Fig (A)
Fig (B)
VGP Tray Bottom
VGP Tray top
Using two Captive fastener mount
VGP Tray bottom to the Sytem Utility
box.
To Next Page
