IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 4 Functional Checks 4-13
4-3-7 M Mode Controls
4-3-7-1 Preparations
1.) Connect one of the probes listed in 3-6-5 "Available Probes" on page 3-24, in Chapter 3 Installation
to the System probe connector.
2.) Turn ON the scanner (if it isn’t turned on already).

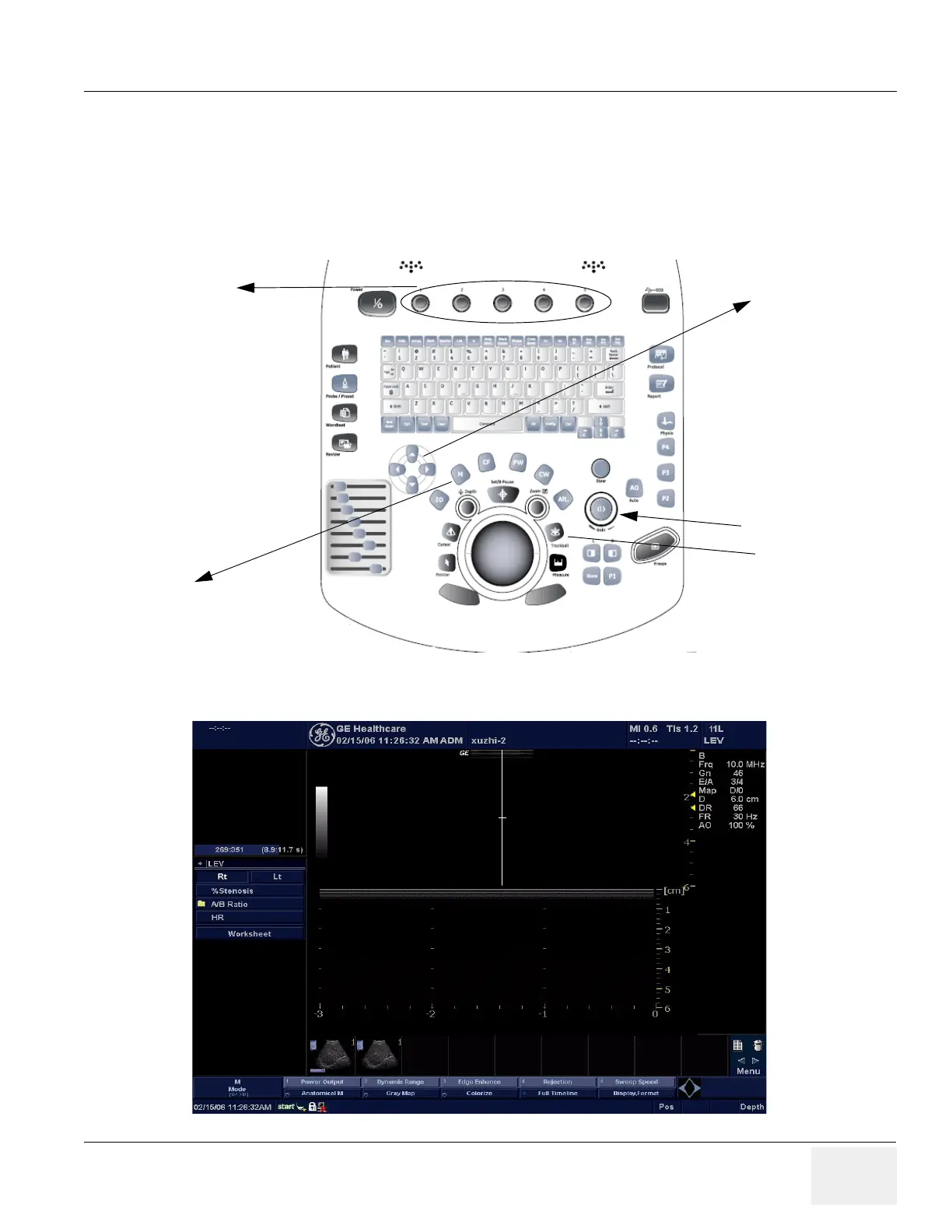

Figure 4-10 Controls available in M Mode
Figure 4-11 M Mode Screen Picture Example
Primary Menu Secondary Menu
M Mode
M Cursor
frequency
Dynamic Range
Sweep Speed
Display Format
Full Timeline
Colorize
Edge Enhance
Anatomical M
Gray Map
Gain
Rejection
Colorize
Poweroutput
