5-16 Section 5-2 - PWA Assy Diagrams
5-2-5 Connector Board

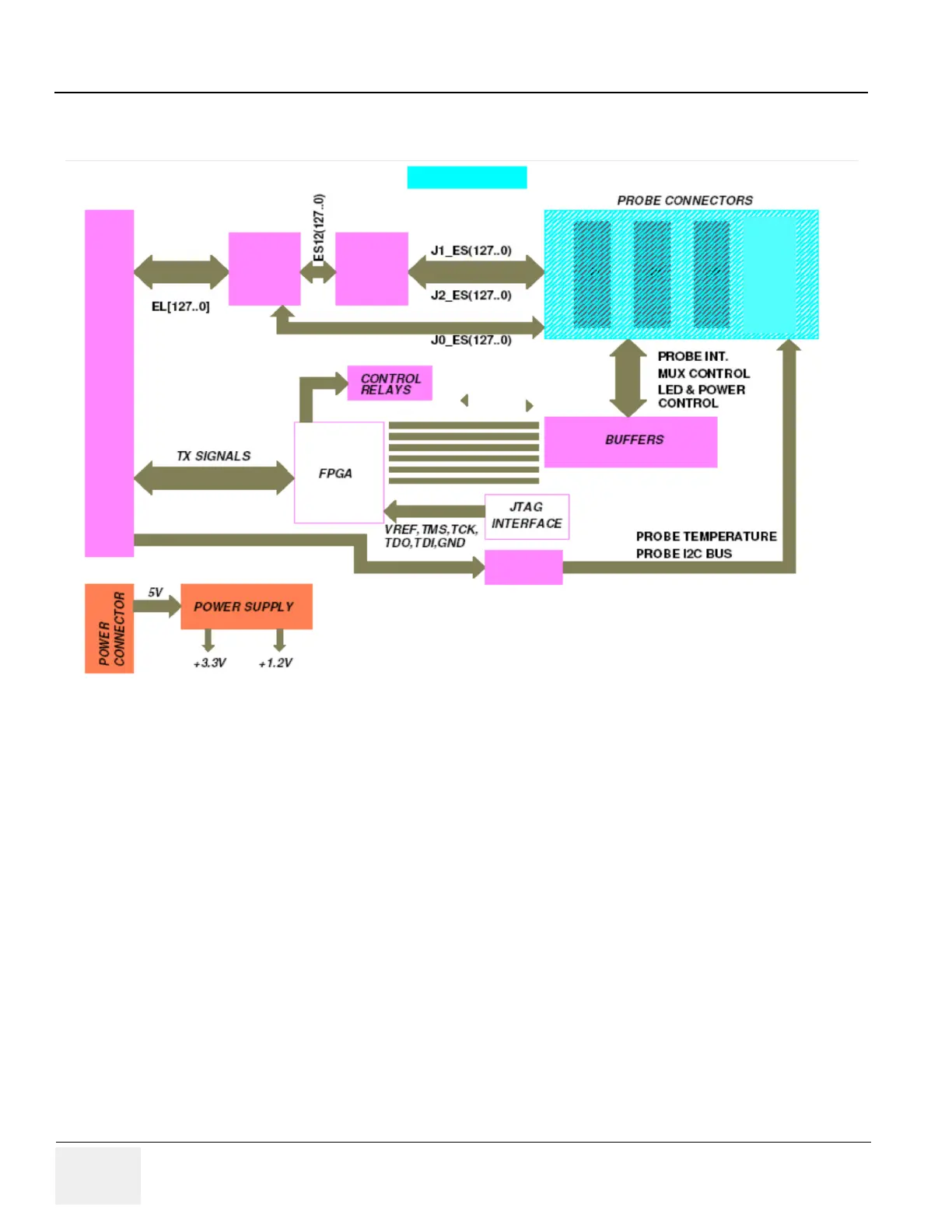

Figure 5-12 Connector Board Block Diagram
• There are 3 banks of relays on the Connector Board one each for each probe connector.
• There is one FPGA that acts like a buffer for the Probe related signals and is the interface between
the probe and the main TX Board FPGA. There is a I2C slave also implemented on this FPGA that
responds and interfaces with the Host I2C controller on the TX board it is mainly for probe selection
and control
• The Power supply to the TX board from the PDB board is connected via the Connector Board.
To Next Page
