GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 4 Functional Checks 4-7
4-3-5 System Features
4-3-5-1 Control Panel
1.) Patient
2.) App Selection/Preset Key
3.) Work sheet
4.) Review Report & End Exam
5.) TGC
6.) Sub menu keys
7.) Userdefined key 2/Measure/ Trackball/ Zoom/ Set/pause/Depth/Cursor/Pointer/Userdefined key1
8.) 2D/M/CF/PW/PDI/Alt.Gain
9.) L & R/ Store & P1
10.)Freeze
11.)Steer
12.)Auto (Ao)
13.)Print keys & Physio
14.)Protocol & Report
15.)Alphanumeric keys
16.)NTUPI/Top menu keys

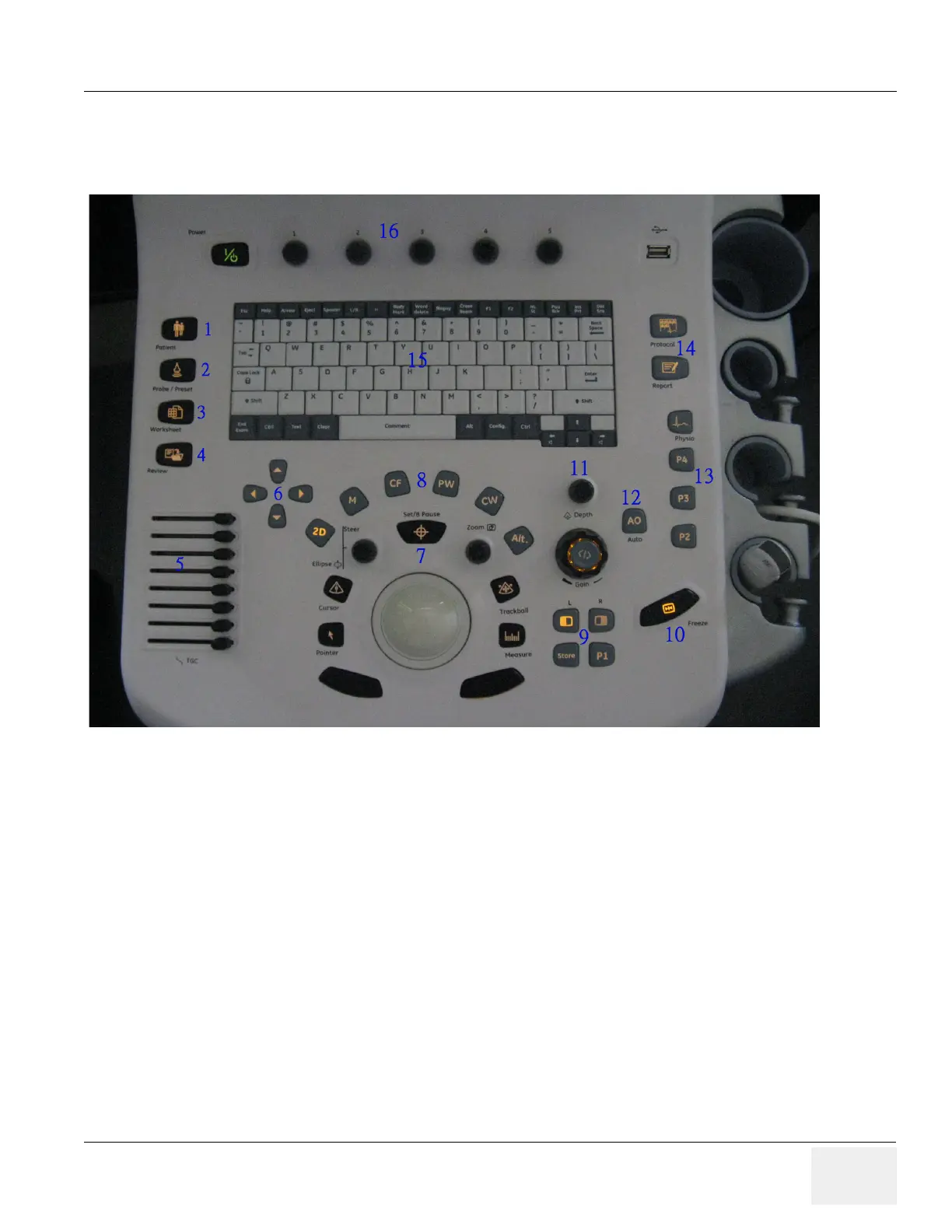

Figure 4-5 Control Panel Tour
