GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-14 Section 8-2 - Disassembly/Re-assembly of VIVID P3
8-2-7 Keyboard Assembly (FRU P/N :5340674) (cont’d)
5) Remove cable from keyboard Assembly of the system. Refer Figure 8-13 on page 8-14

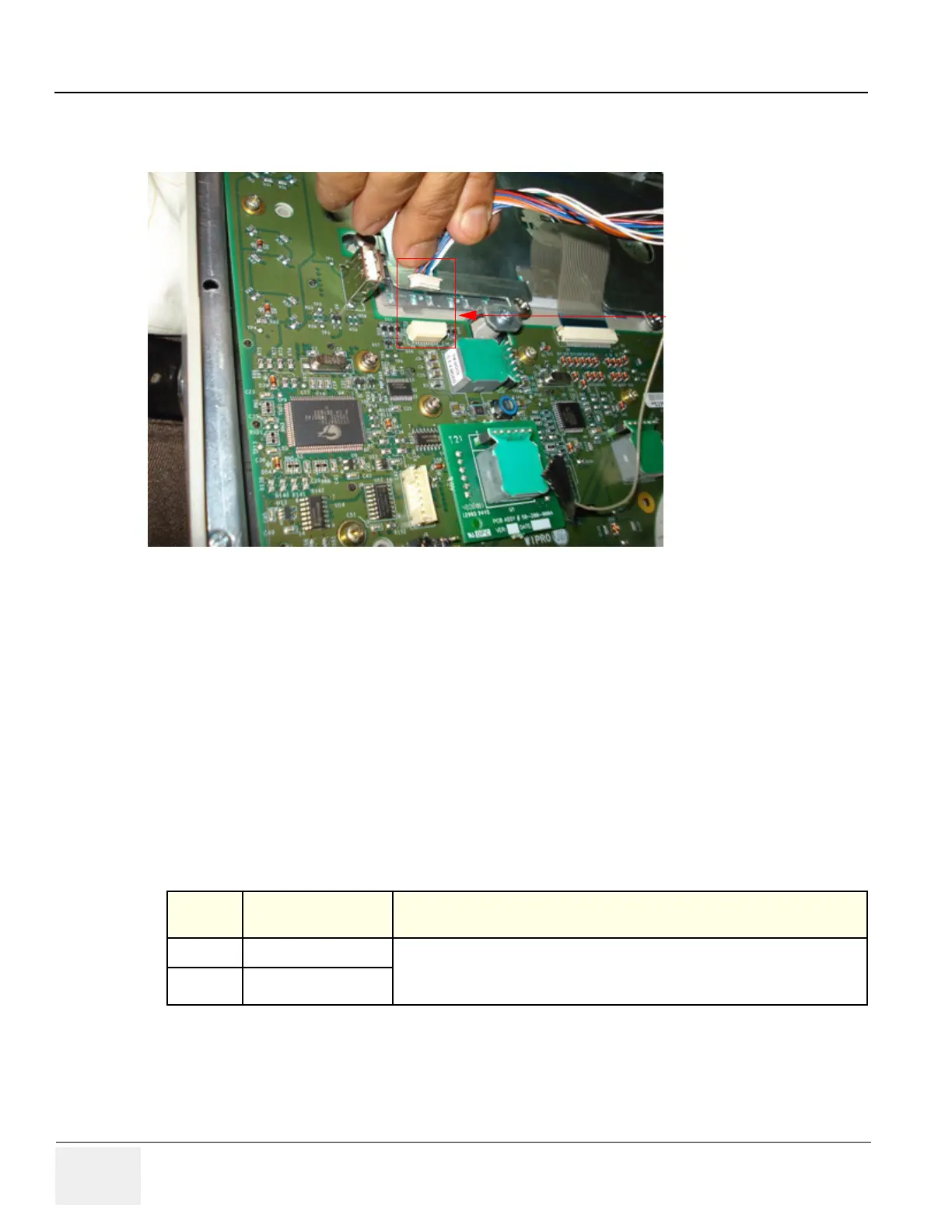

Figure 8-13 Keyboard cable location
8-2-7-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-2-7-6 Replace Keyboard Assembly
1.) Connect keyboard cable to the new Keyboard Assembly.
2.) Locate the Keyboard top hinge appropriately.
3.) Replace keyboard Assembly by fixing three screws (a,b,c).
4.) Refix Gel holder and Probe holders.
8-2-7-7 Functional Checkout Procedure
See
Section
Functional Test Debrief Script
4-3-1 Power On/Boot Up Service Manual Direction 5344303-100, Section 8-2-6. Equipment passes all
required tests and is ready for use.
4-3-2 Power Off/ Shutdown
