IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-13
8-2-7 Keyboard Assembly (FRU P/N :5340674) (cont’d)

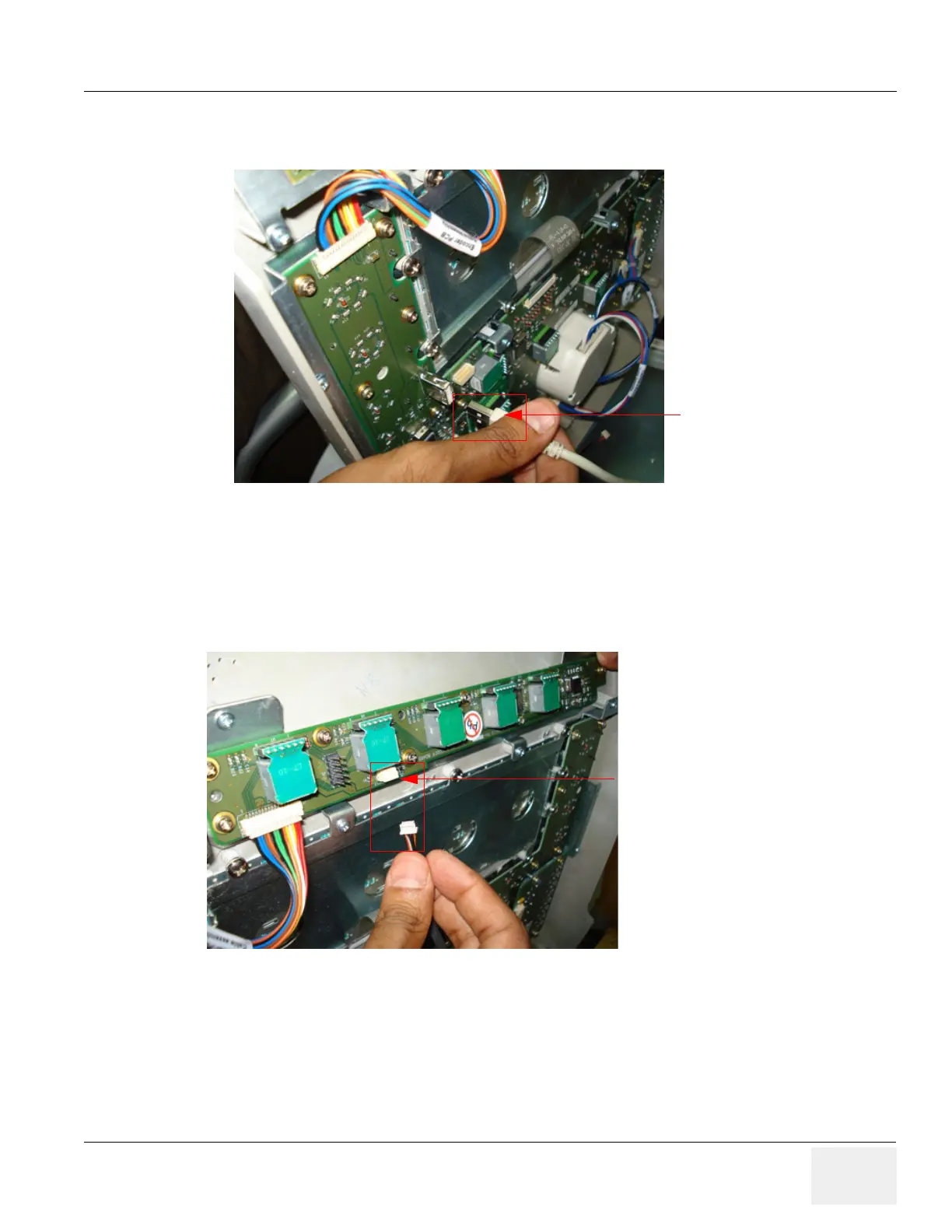

3) Remove USB cable from keyboard PCB Assembly of system. Refer Figure 8-11 on page 8-13
Figure 8-11 Keyboard cable location
4) Remove keyboard interface cable from keyboard Assembly of the system.
Refer Figure 8-12 on page 8-13
Figure 8-12 Keyboard cable location
USB cable
keyboard interface cable
To Next Page
