GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-26 Section 8-4 - Mechanicals
Section 8-4 Mechanicals
8-4-1 RH Side Cover (FRU No: 5350996)
This is a description on how to remove and replace the Right Cover.
8-4-1-1 Tools
• Common Torx screwdrivers
8-4-1-2 FRU BOM
This FRU Kit P/N:5350996 consists of following parts.
8-4-1-3 Needed Manpower
• 1 person, 15 minutes
8-4-1-4 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-1-5 Removal Procedure
1) Remove the screw cap of four places (1,2,3,4) on RH-side cover of the system.
Refer Figure 8-21 on page 8-26
2) Remove the RH-side cover from the system. Refer Figure 8-21 on page 8-26

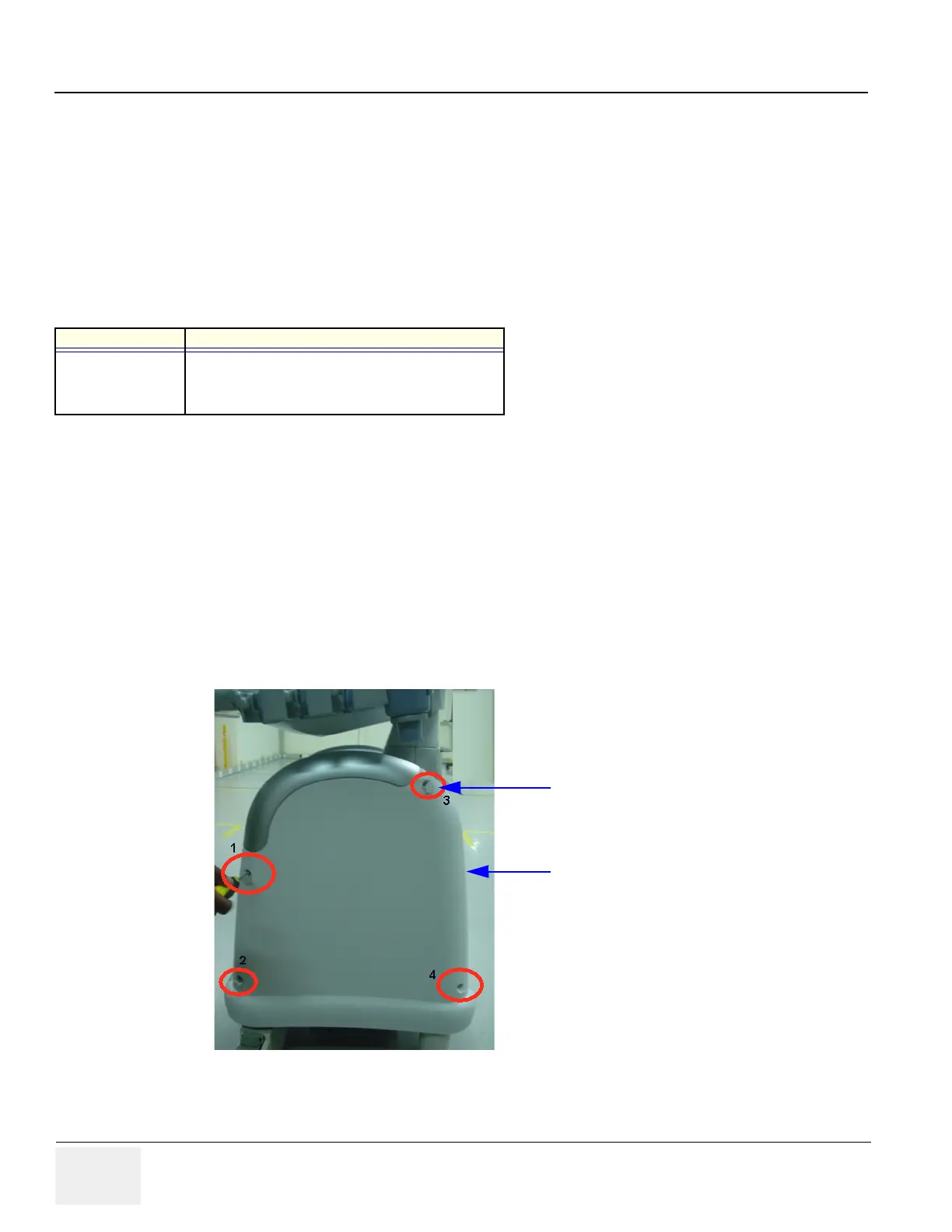

Figure 8-21 RH-side cover
Part No Description
5310089 RH_Side_Cover_Lakshya
5310094 Side_Screw_Cap_Lakshya
5196598 Captive fasteners- M4 X 12 CAPTIVE
Screw Cap
RH-Cover
To Next Page
