IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-27

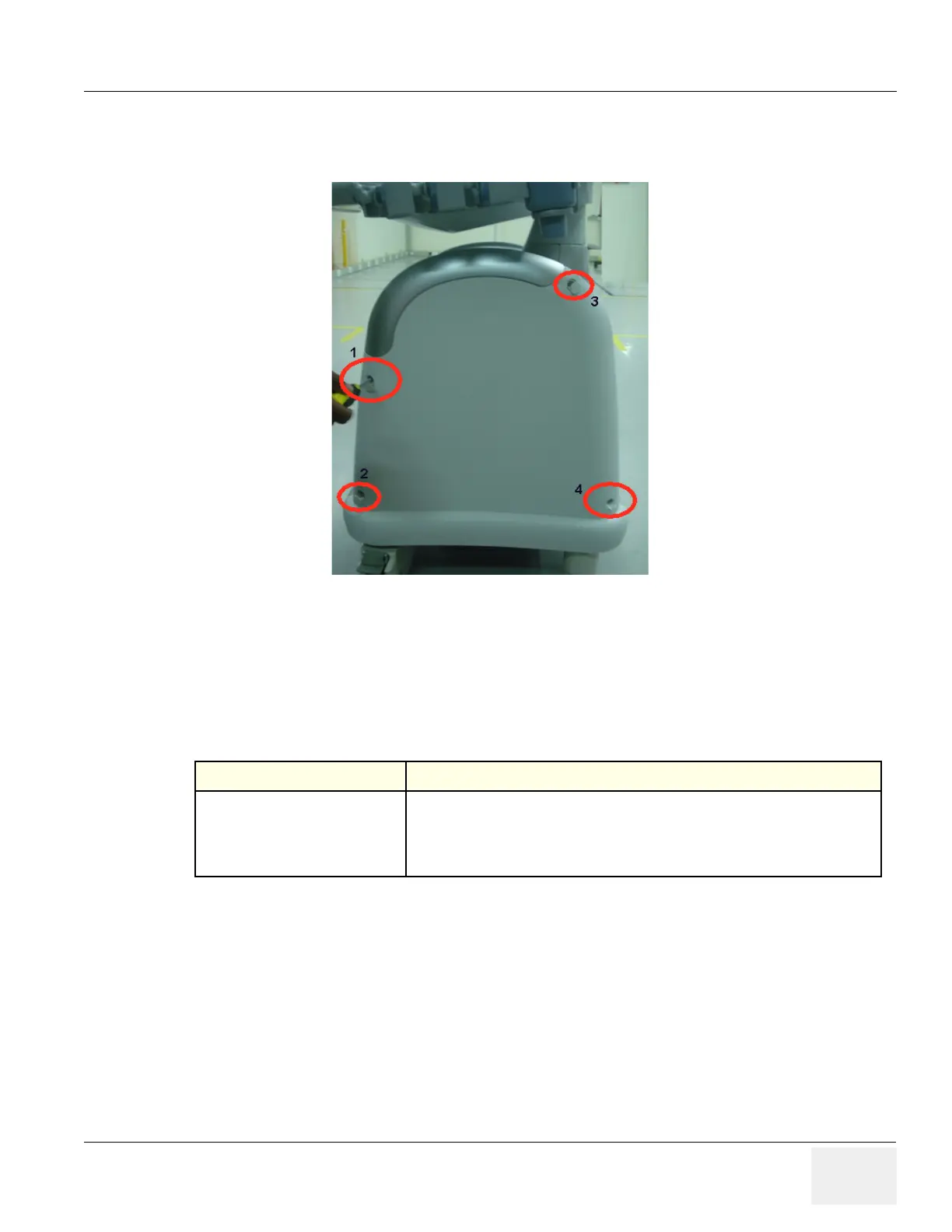

3) Remove the RH-side cover four screws (1,2,3,4) of the system. Refer Figure 8-22 on page 8-27
Figure 8-22 RH-side cover
8-4-1-6 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-4-1-7 Functional Checkout Procedure
Functional Test Debrief Script
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
Service Manual Direction 5344303-100, Section 8-4-1. Equipment passes all required
tests and is ready for use.
