GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 55344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 5 Components and Functions (Theory) 5-17
5-2-6 Rear Panel-1 & Rear panel 2

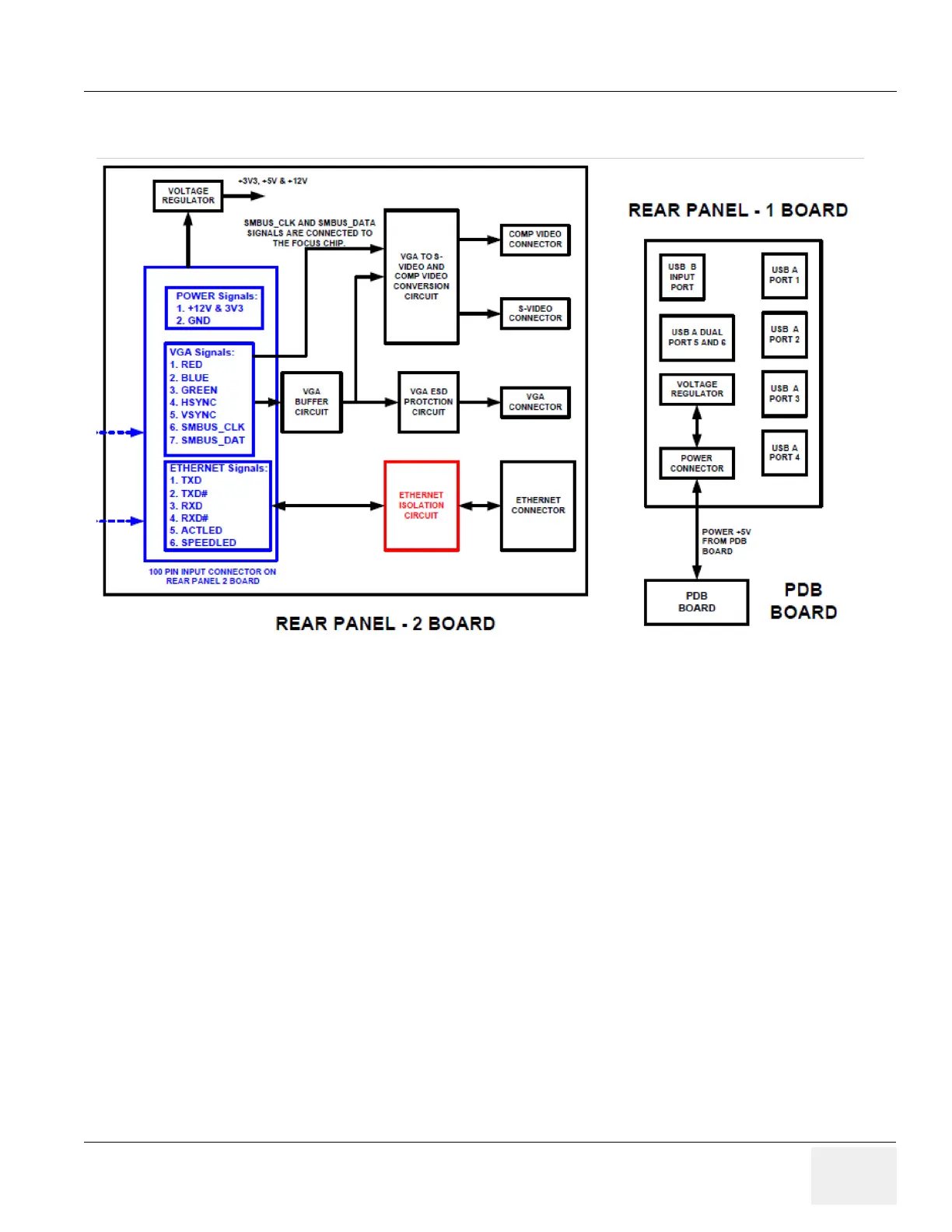

Figure 5-13 Rear Panel 1 & 2 (Vivid P3)
• Rear panel provides all the external interfaces to the user like 1 ethernet port, 1 VGA port, 4 USB
ports, BNC Connector and one S-Video connector.
• The Ethernet signals and VGA signals are directly routed from the MST board via the FRC cable
with buffering. For the Video out signals (BNC and S-Video) there is a video conversion logic built
which converts the VGA input into the S video and Composite video formats.
• The resolution of the Video output would be 640x480.
• Power supply to the rear panel is connected from the PDB board.
