GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-38 Section 8-4 - Mechanicals

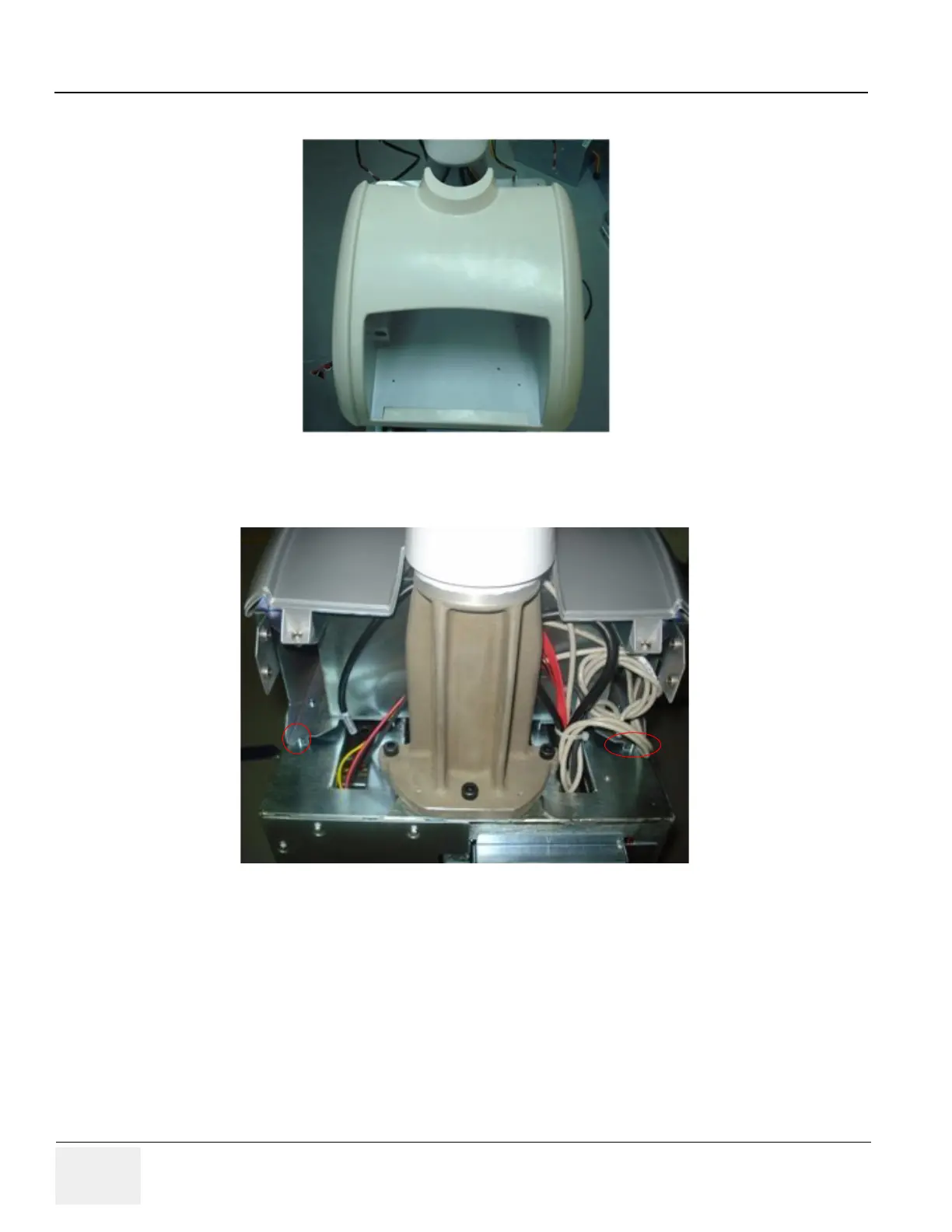

8) Remove the top whole assembly by pulling the top assembly front side from the system. Refer Figure
8-33 on page 8-38
Figure 8-33 Top assembly
9) The top assembly should be to removed from two locating pins (A,B). Refer Figure 8-34 on page 8-38
Figure 8-34 Top assembly
8-4-5-6 Mounting procedure
1.) Install the new parts in the reverse order of removal.
A B
