8-36 Section 8-4 - Mechanicals
8-4-5 Top Cover (FRU P/N :5315121)
This is a description on how to remove and replace the Top cover Assembly.
8-4-5-1 Tools
• Common Phillips screwdrivers
8-4-5-2 FRU BOM. This FRU Kit P/N:5315121 consists of following parts.
8-4-5-3 Needed Manpower
• 1 person, 15 minutes
8-4-5-4 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-5-5 Removal Procedure
1) Remove the LH-side cover from the system. Refer section 8-4-2 on page 28
2) Remove the RH-side cover from the system. Refer section 8-4-1 on page 26
3) Remove the Front cover from the system. Refer section 8-4-4 on page 33
4) Remove the Rear cover from the system. Refer section 8-4-7 on page 42
5) Loosen two screws (A.B) in front side of top cover from the system. Refer Figure 8-30 on page 8-36

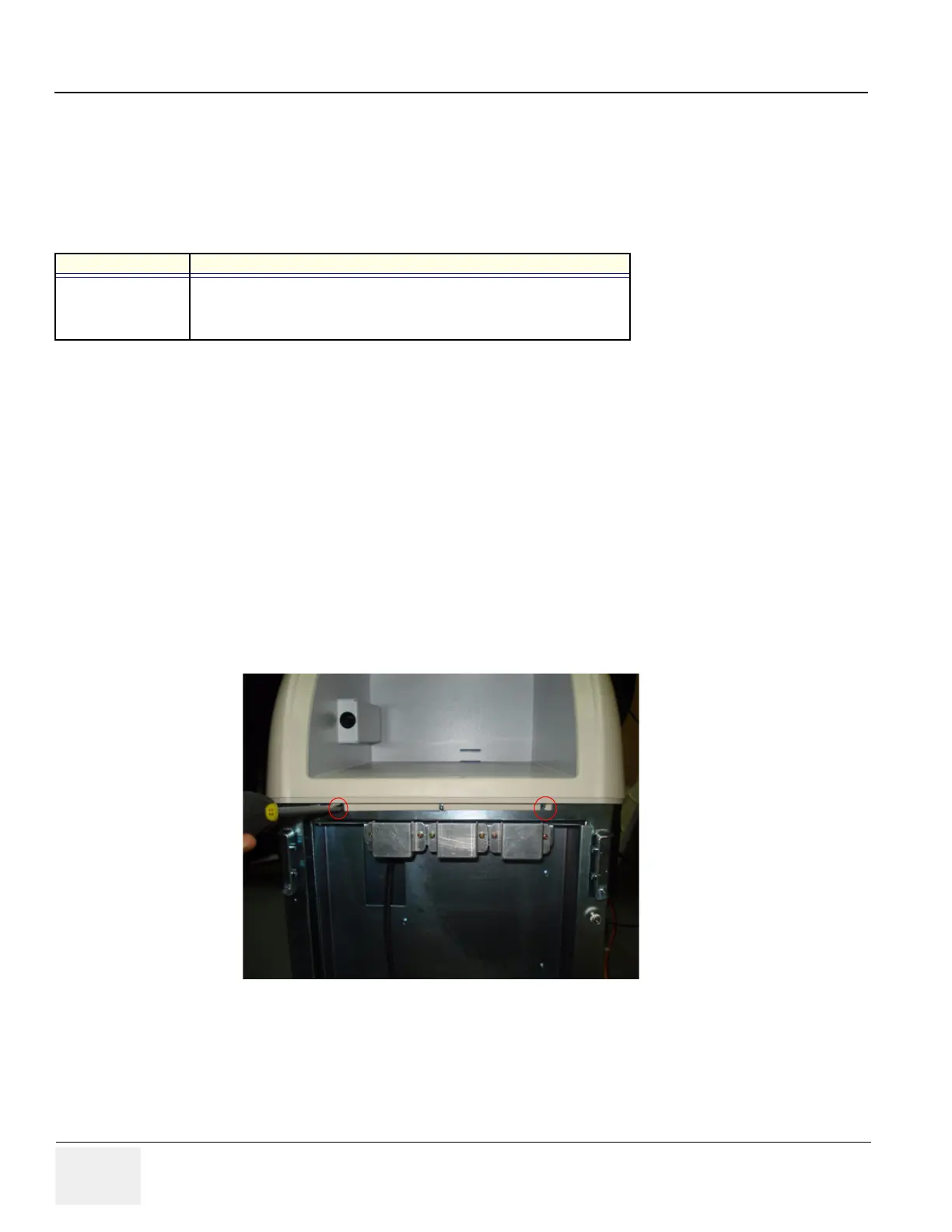

Figure 8-30 Top cover
PART NO DESCRIPTION
5310090 Top_Cover_Lakshya
5313668 Utility_Box_Assy
2334831 Fasteners- M4 X 8 PAN PHILIP
A
B
To Next Page
