8-4-11 HARD DISK DRIVE ASSEMBLY ( PART NO:5315113)
8-4-11-1 Tools
• Common Phillips screwdrivers
8-4-11-2 FRU BOM. This FRU Kit P/N:5315113 consists of following parts.
8-4-11-3 Needed Manpower
• 1 person, 15 minutes
8-4-11-4 Preparations
Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-11-5 Removal Procedure
1) Remove Right side cover and Right side EMI cover. Refer Section 8-4-8 on page 8-44
2) Loosen the one screw (A) and pull out the hard disk drive assembly as shown in
Figure 8-47 on page 8-53

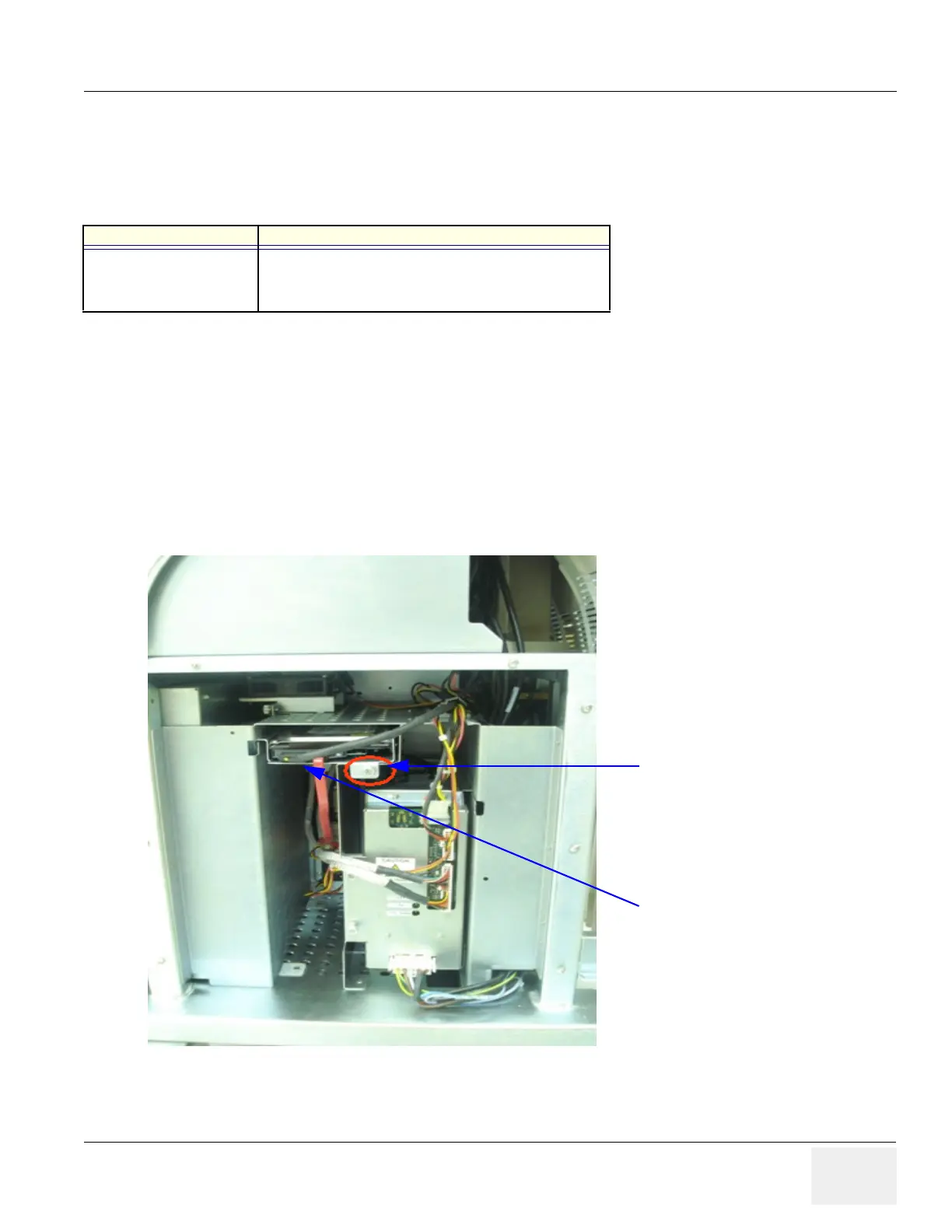

Figure 8-47 Removing Hard Disk Drive Power cable
PART NO DESCRIPTION
5309106 SATA HDD (160GB)
5308946 Hdd_Brkt_Lakshya
2334857 Fasteners- 6-32UNCX6 PAN PHILIPM/CSCREW
Screw (A)
HDD Power cable
To Next Page
