GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
3-16 Section 3-6 - System Configuration
3-6-3 Connecting Cables
3-6-4 Peripherals/Accessories Connector Panel
VIVID P3 peripherals and accessories can be properly connected using the Rear panel.
3-6-4-1 Rear Panel Connector
Located on the Rear panel are USB Ports, VGA, S-Video, Composite Out, Ethernet port & Power outlet.
A.) USB ports for printers & ECG (B/W, Color and USB), Memory Stick, Footswitch, DVD-
RW, USB HDD.
B.) Ethernet port
C.) VGA Output
D.) S-Video Out
E.) Composite video out
F.) Power outlet
WARNINGWARNING
Equipment damage possibility. Be sure to use the following recommended connecting cables to
connect recording devices and a network with VIVID P3 console.
Table 3-6 List of Connecting Cables
Name Figure NOTE
USB Cable
For USB ECG
USB Cable For USB Printer

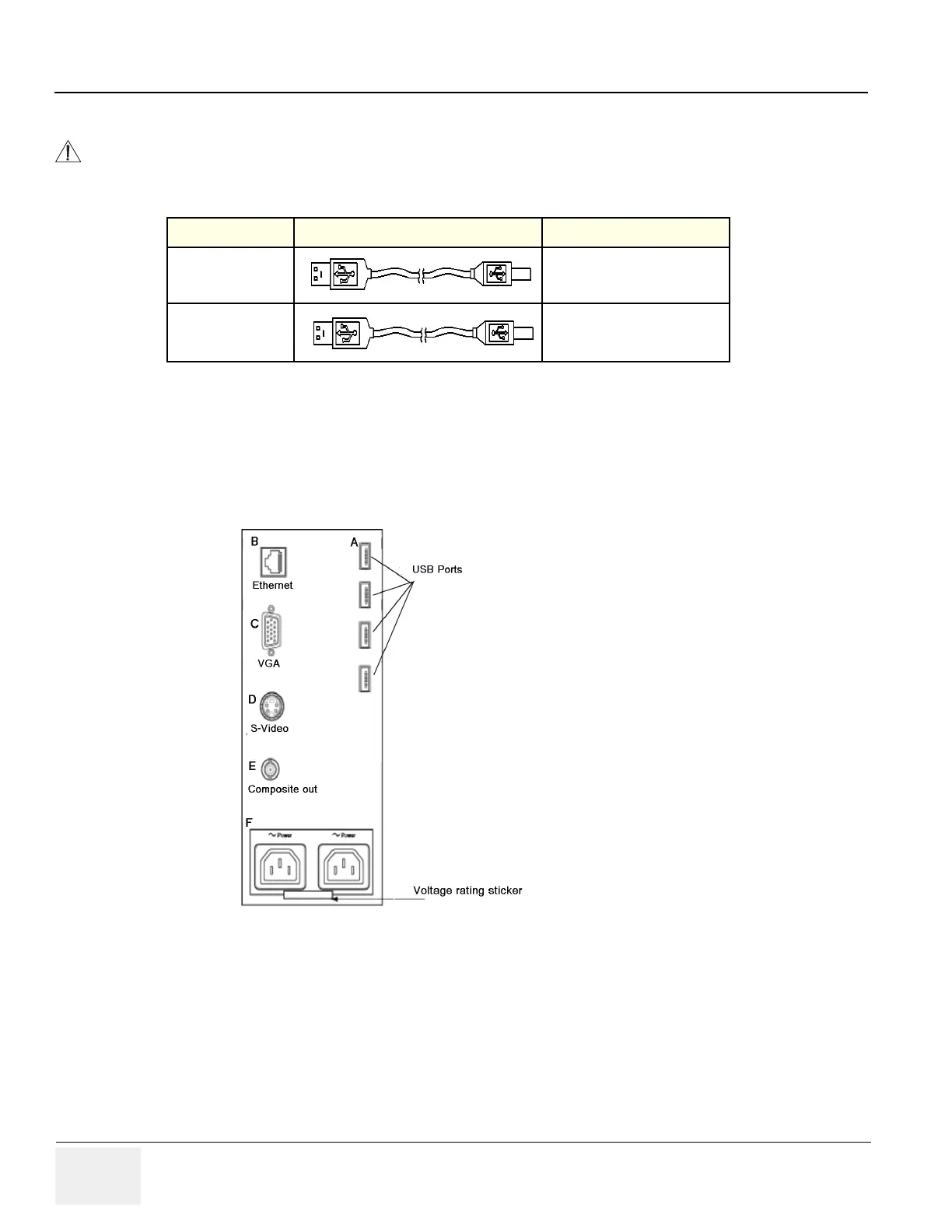

Figure 3-10 Rear Panel
