5-8 Section 5-1 - Overview
5-1-8 Wiring

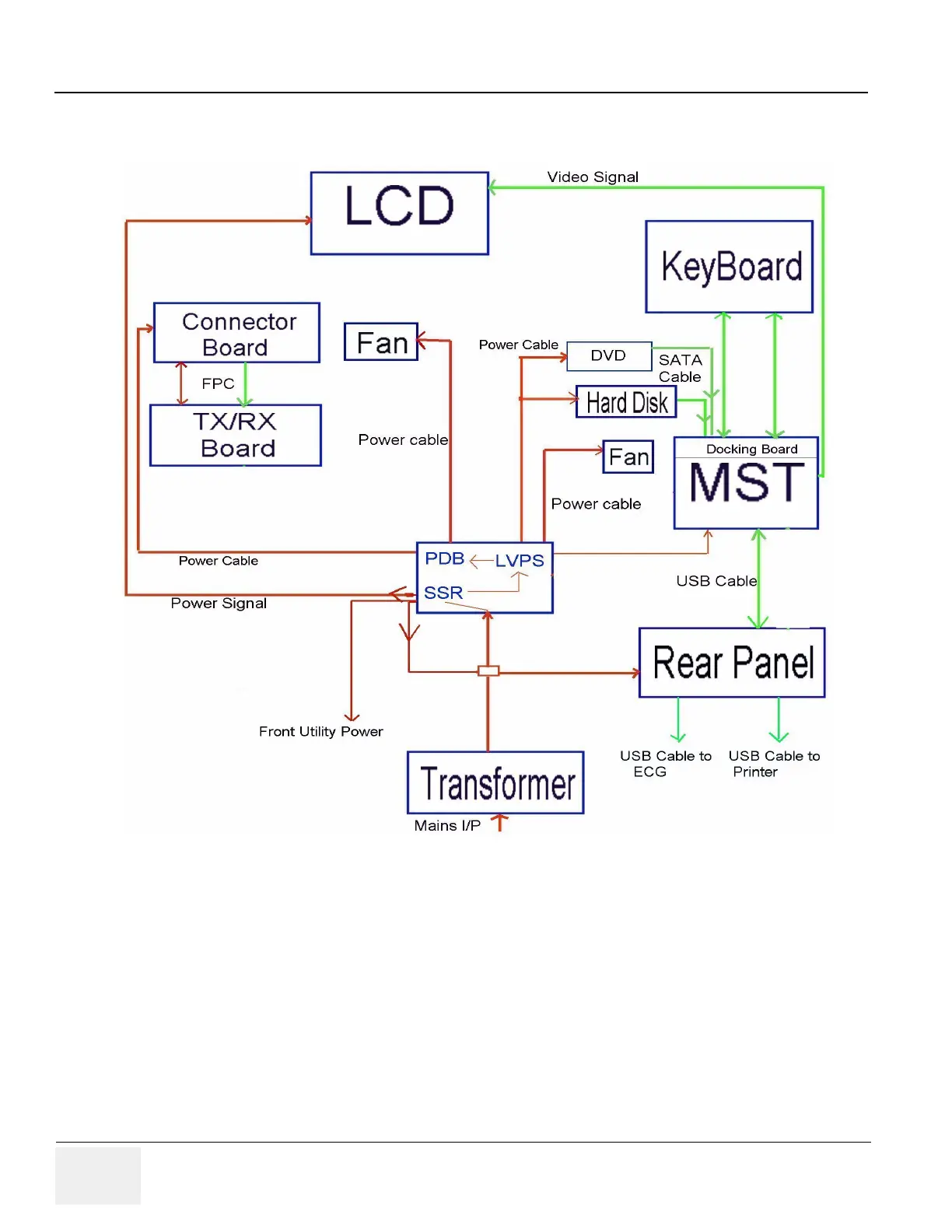

Figure 5-6 Wiring Diagram (Vivid P3)
• TX64: VIVID P3 Transmit board
• RX64: VIVID P3 Front end processing board
• MST: VIVID P3 Master board
• PWR SW: Power Switch
• FPC: Flexible Print Circuit board
• PDB: Power Distribution Board
• SSR: Solid State Relay
