GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 55344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 5 Components and Functions (Theory) 5-15
5-2-4 CWD

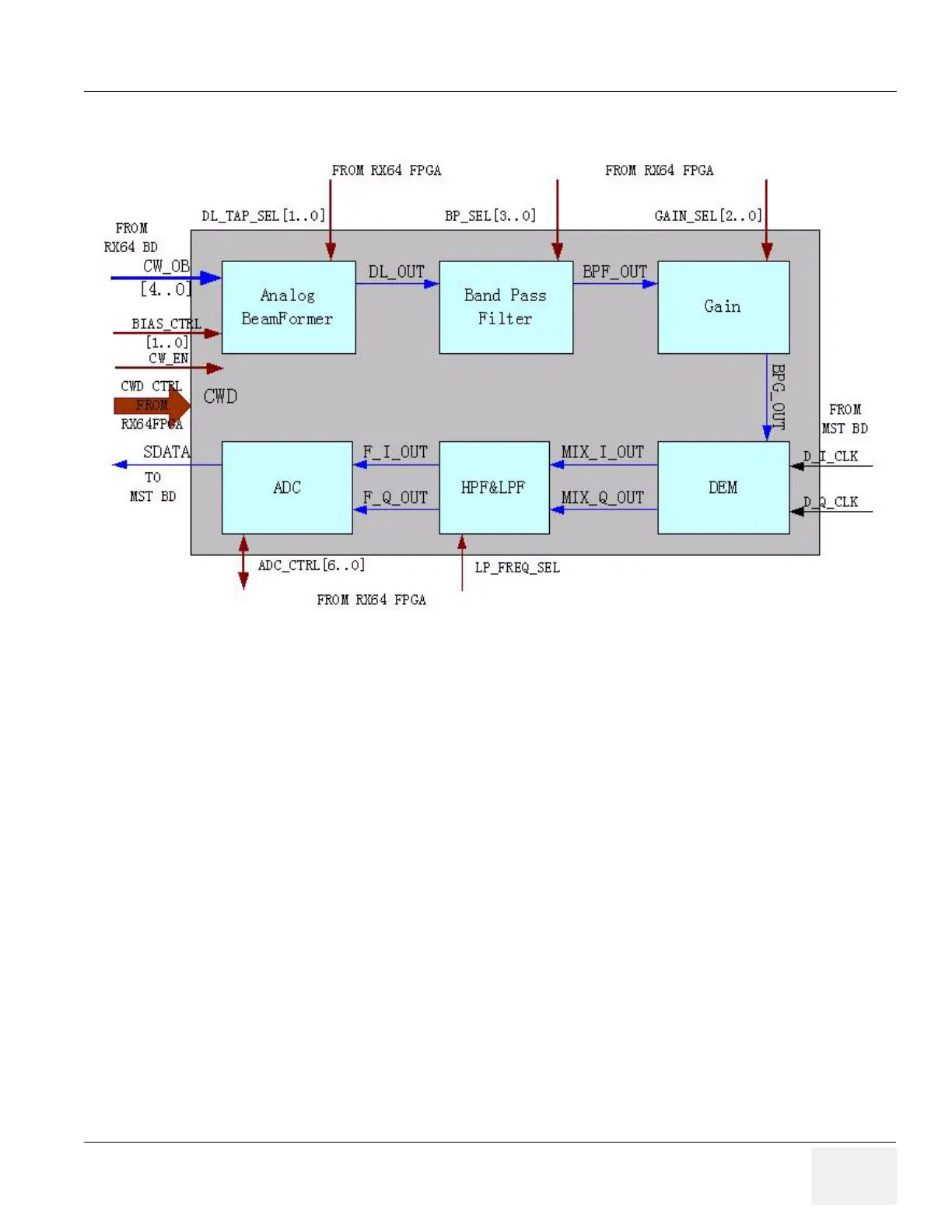

Figure 5-11 CWD Block Diagram
• CWD: Continue wave doppler board
• DEM: Demodulator
• HPF: High pass filter
• LPF: Low pass filter
5-2-4-1 Description
This diagram describes VIVID P3 CWD board, it resides under RX64 board.
The main function:
• Generate continue wave form image data.
