3-6-4-2 TOP Panel Connector
Located on the Top Right side panel are one USB Port for control connections for printer, USB Thumb
Drive and service tools.)
NOTE: Each outer (case) ground line of peripheral/accessory connectors are protectively grounded.

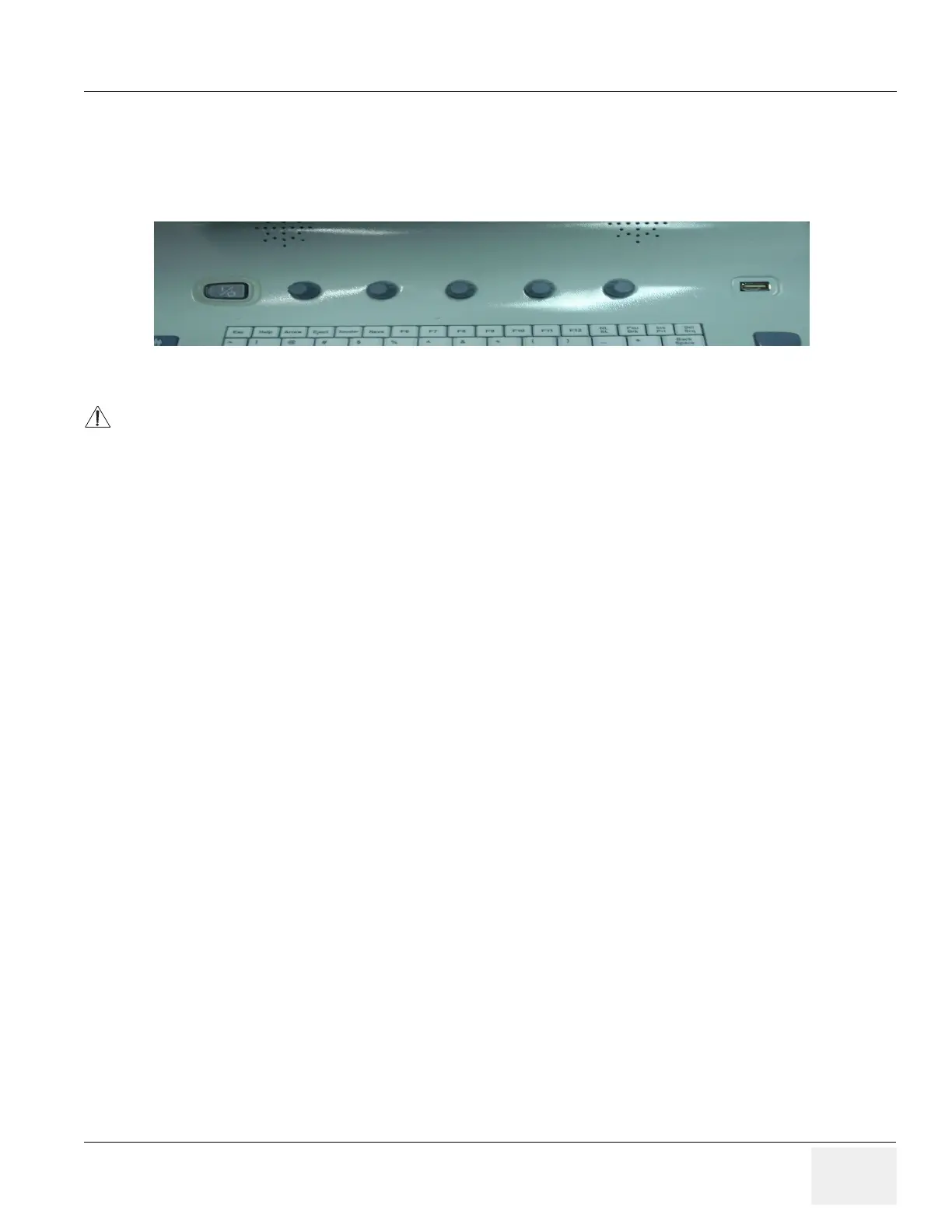

Figure 3-11 Left Side Panel
NOTICE
The USB devices should be connected to VIVID P3 first, power on USB devices before turning VIVID
P3 to work.
