Chapter 8 Replacement Procedures 8-47
4) Use Screwdriver and loosen eight screws (1,2,3,4,5,6,7,8,), from LH-side EMI cover of VividP3
system.
Refer Figure 8-39 on page 8-47

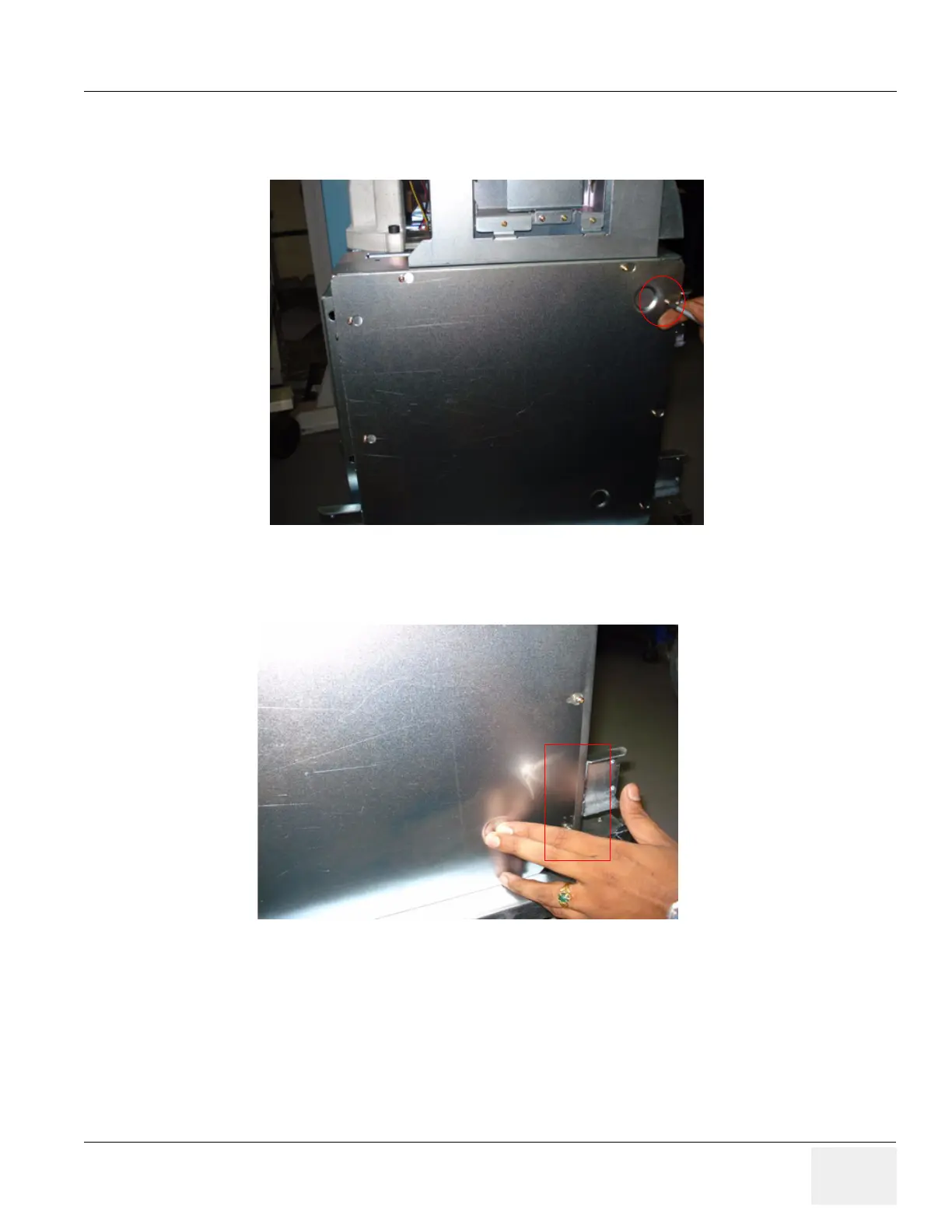

Figure 8-39 Loosen screw of LH- side EMI cover
5) Remove LH-side EMI cover of Vivid P3 system. Refer Figure 8-40 on page 8-47
Figure 8-40 Remove LH- side EMI cover
8-4-9-6 Mounting procedure
1.) Install the new parts in the reverse order of removal.
