8-84 Section 8-12 - Power Cable Set (FRU P/N: 5315036)
8-12-1 CWD Assy (FRU No:5315026 )
Purpose: This is a description on how to remove and replace the CWD Assy.
8-12-1-1 Tools
• Common phillips screwdrivers
• Allen/Unbraco wrench
8-12-1-2 Needed Manpower
• 1 person, 30 minutes + travel
8-12-1-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
NOTE: If the CWD Board is Defective/Not Present in the image mode “Mode not available on this
probe“ message will apear.

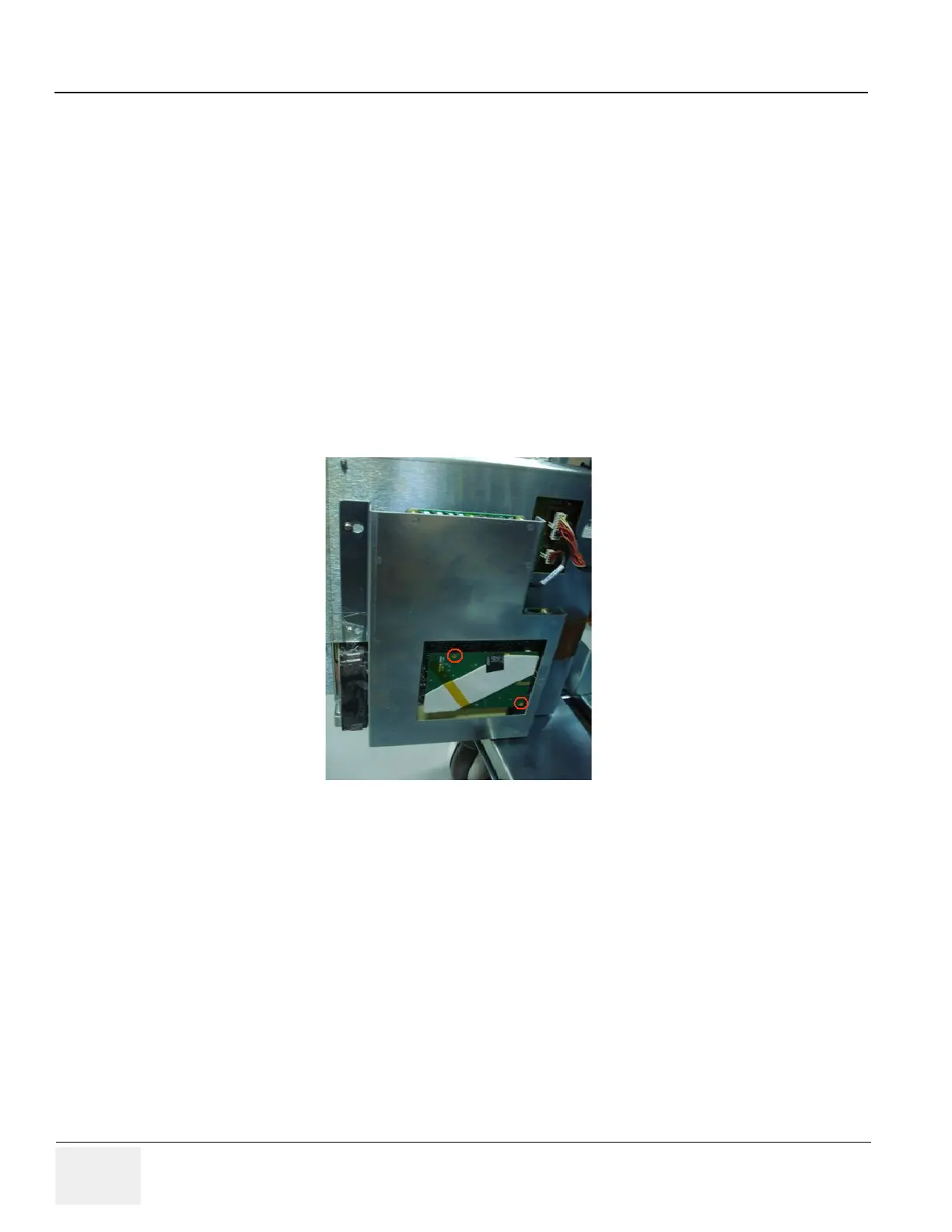

Removal Procedure of CWD. Refer to Figure 8-71.
Figure 8-71
1.) Unscrew two screws(1-2).
2.) Disconnect the CWD assy.
8-12-1-4 Removal procedure
Refer to 8-12-1 on page 8-84 .
1.) Unscrew two screws(1-2) to remove the CWD cover. see 8-12-1 on page 8-84 ]
2.) Connect the CWD assy to RX64. [See 8-12-1 on page 8-84 ]
3.) Press the CWD assy tightenedly, refer to 8-12-1 on page 8-84 .
4.) Screw two screws(1-2) to fix the CWD assy on RX64 assy., see 8-12-1 on page 8-84 ]
