GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-69
Section 8-7 RX Board (FRU P/N: 5315027)
8-7-0-1 Tools
• Common Phillips screwdrivers
8-7-0-2 FRU BOM
This FRU Kit P/N:5315027 consists of following parts.
8-7-0-3 Needed Manpower
• 1 person, 30 minutes
8-7-0-4 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-7-0-5 Removal Procedure
1) Remove the connector board assembly. Refer section 8-6-2 on page 63
2) Loosen the Five screws (1,2,3,4,5,) of TX board from the system. Refer Figure 8-59 on page 8-67
3) Remove the Tx board from the system. Refer Figure 8-59 on page 8-67

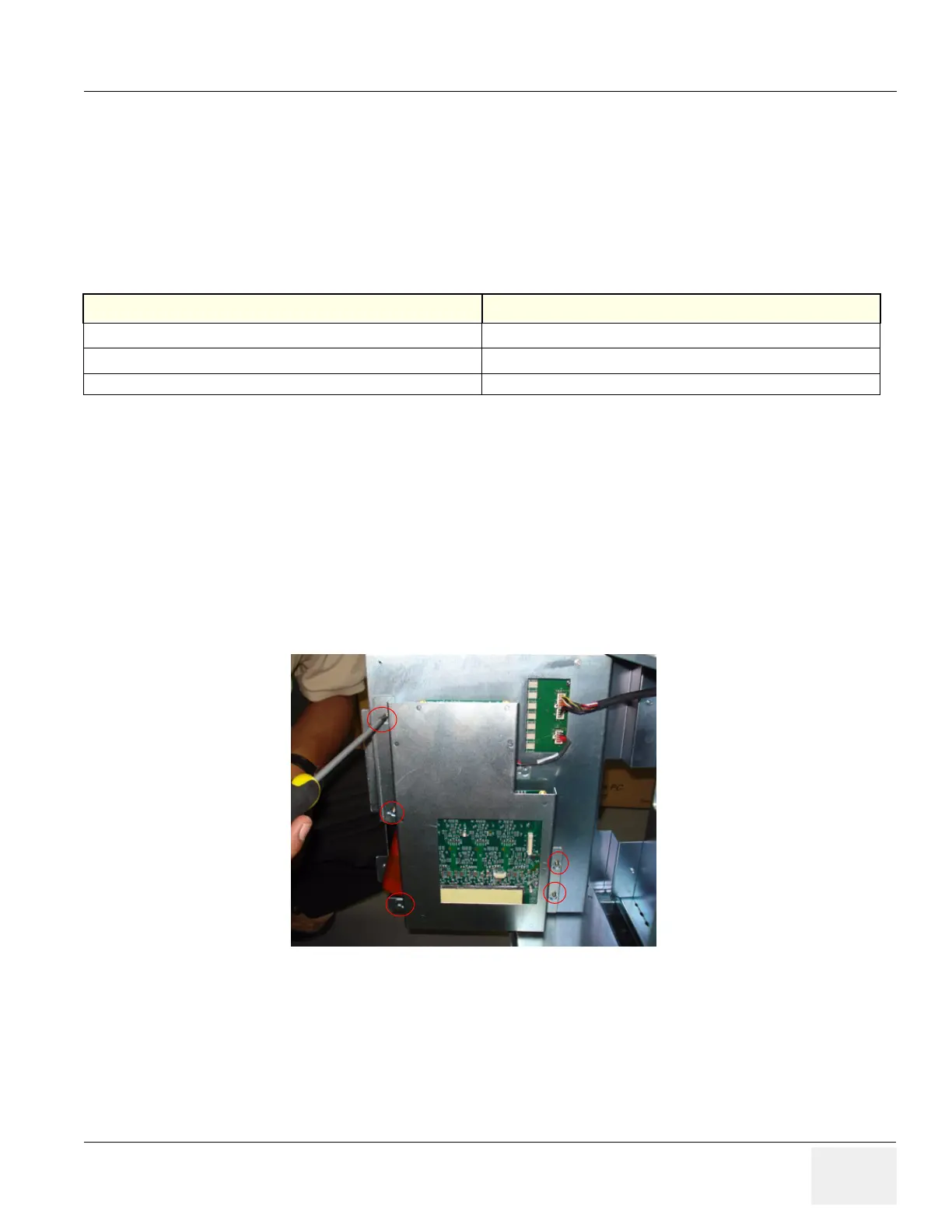

Figure 8-60 TX board Assembly
4) Remove the Tx conn board cable. Refer Figure 8-61 on page 8-70
Part Number Part Description
2404906
Receive Board
5308959
RX mounting Bracket
2139752 Fasteners- STR.SCR M3 X 8+BUILT IN SPR+PLNWAS
1
2
3
4
5
