Chapter 8 Replacement Procedures 8-41
4) Using the allen key set, unfasten the 4 Hex screws holding the Castor wheel and remove it. Refer
Figure 8-35 on page 8-41

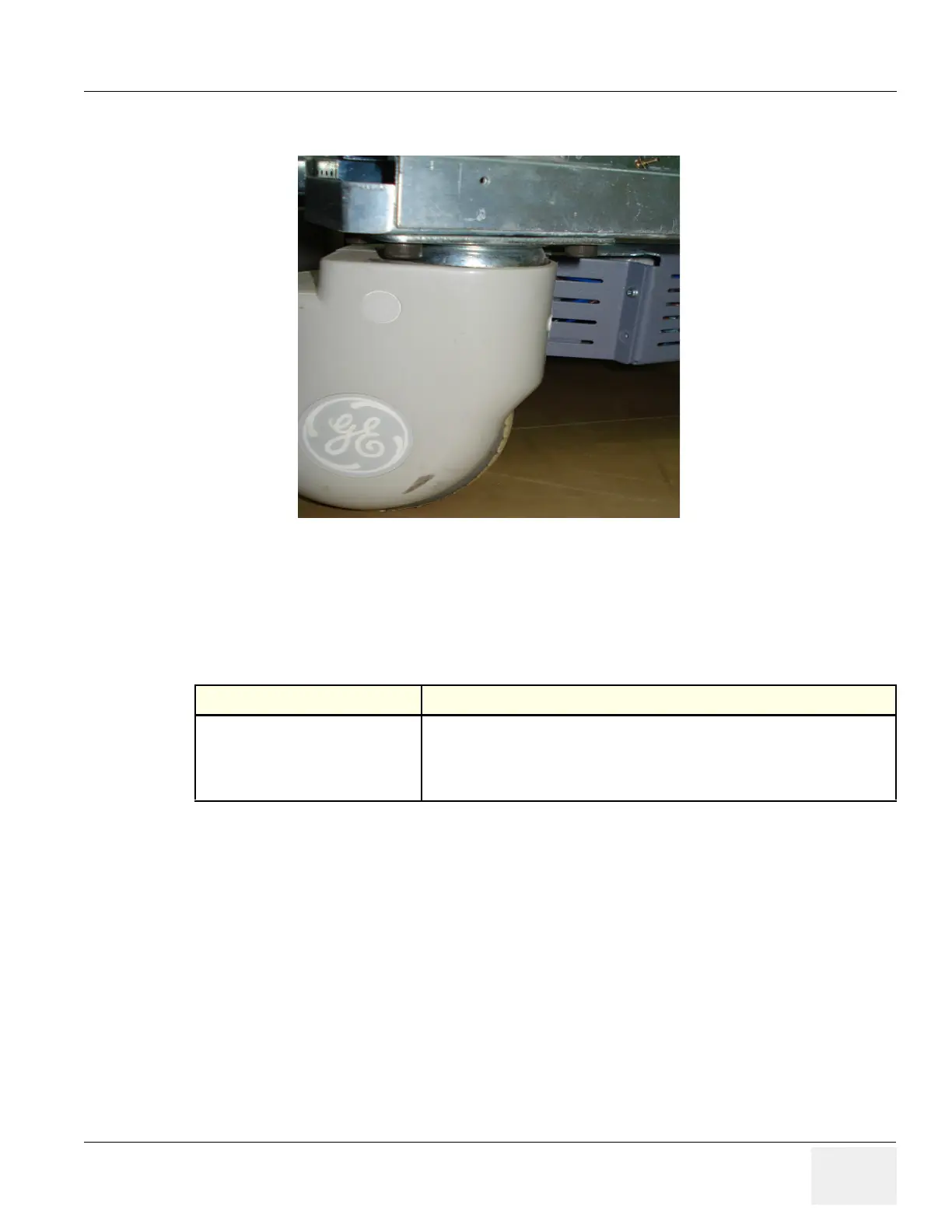

Figure 8-35 Castor wheel
8-4-6-6 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-4-6-7 Functional Checkout Procedure
Functional Test Debrief Script
Do Visual Inspectionand roll system
around and ensure smooth wheel
rotation and sweivwl
Service Manual Direction 5344303-100, Section 8-4-6. Equipment passes all required
tests and is ready for use.
