GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-44 Section 8-4 - Mechanicals
8-4-8 Right EMI Cover (Part of EMI Cover Assy FRU P/N :5315111)
This is a description on how to remove and replace the Right EMI Cover (P/N :5308965).
8-4-8-1 Tools
• Common Phillips screwdrivers
8-4-8-2 FRU BOM. This FRU Kit P/N:5308965 consists of following parts.
8-4-8-3 Needed Manpower
• 1 person, 15 minutes
8-4-8-4 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-8-5 Removal Procedure
1) Remove Right cover. Refer section 8-4-3 on page 30 for details on how to remove Right cover.
2) Use the scewdriver and loosen the eight screws (1,2,3,4,5,6,7,8)
3) Slide and remove RH-side EMI cover. Refer Figure 8-37 on page 8-44 for details on how to remove
Right cover.

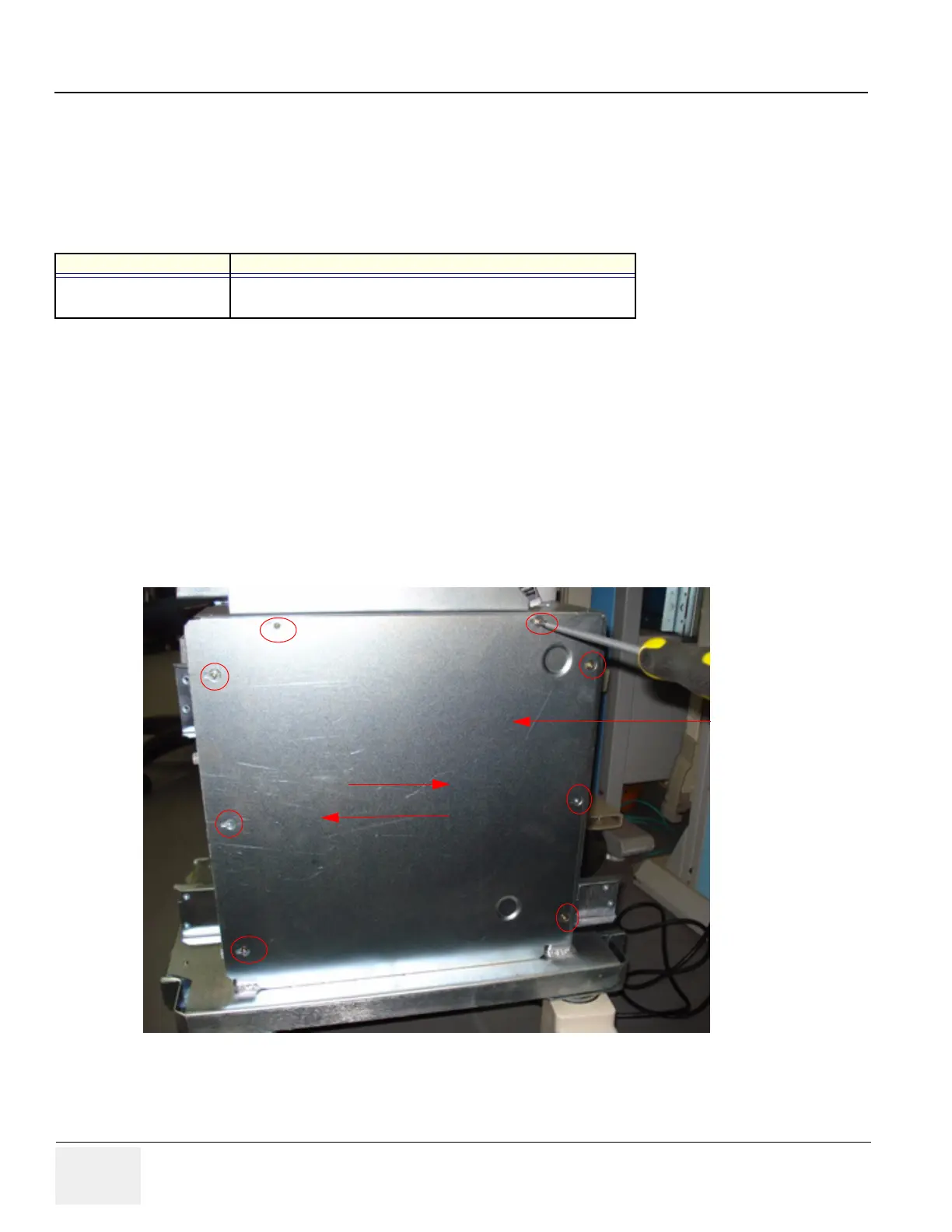

Figure 8-37 RH-side EMI cover
PART NO DESCRIPTION
5308965 RH EMI cover
2334842 Fastener- M3 X 6 ECO-FIX
1
2
3
4
5
6
7
8
RH-side
EMI cover
Slide to right to re-install cover
Slide to left to remove the cover
