Chapter 8 Replacement Procedures 8-33
8-4-4 Front Cover (FRU No.5315116 )
This is a description on how to remove and replace the Front Cover.
8-4-4-1 Tools
• Common Phillips screwdrivers
8-4-4-2 FRU BOM. This FRU Kit P/N:5315116 consists of following parts.
8-4-4-3 Needed Manpower
• 1 persons, 15 minutes
8-4-4-4 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-4-5 Removal Procedure
1) Remove the RH-side cover from the system. Refer section 8-4-1 on page 26
2) Remove the LH-side cover from the system. Refer section 8-4-2 on page 28

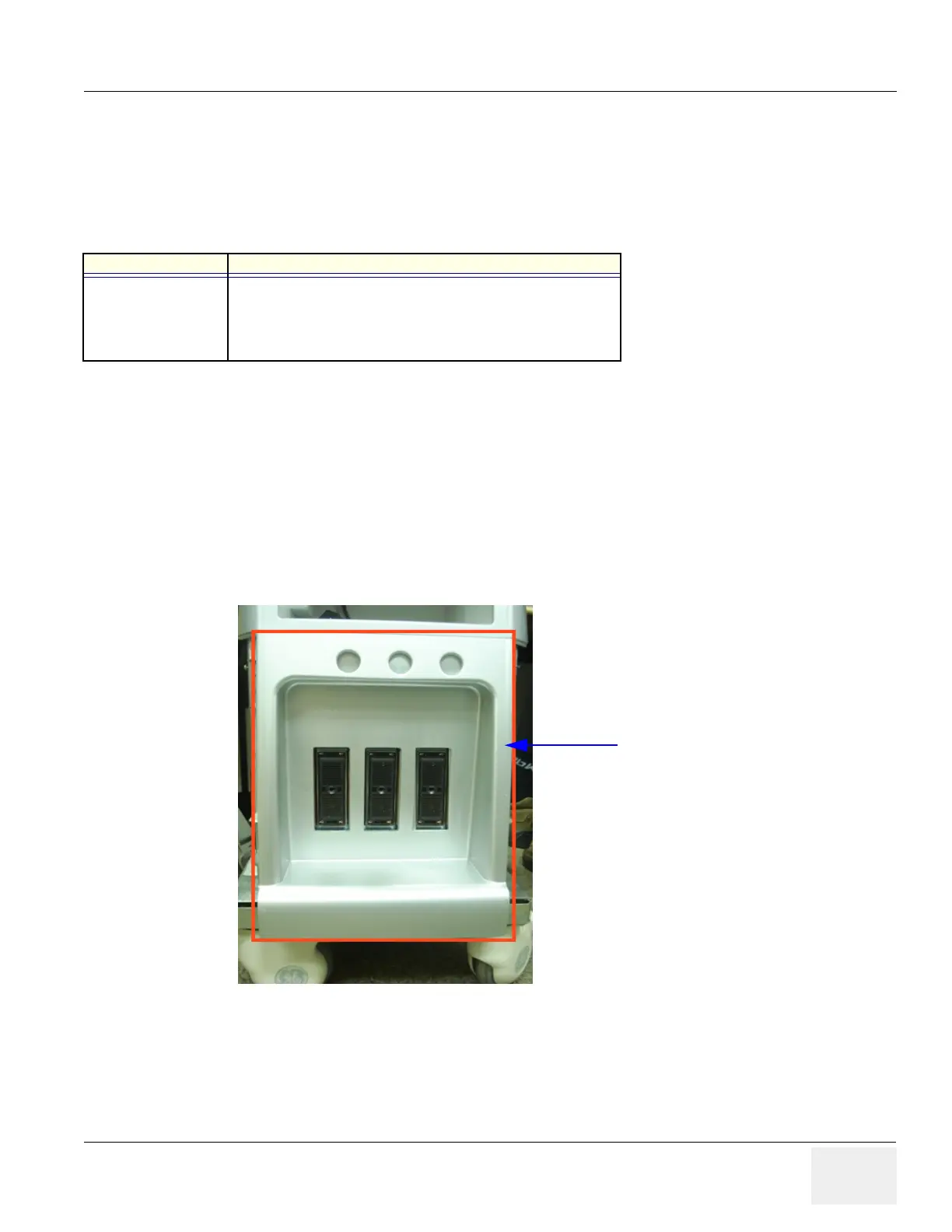

Figure 8-27 Front cover
PART NO DESCRIPTION
5310091 Front_Cover_Lakshya
2334843 Fasteners- M4 X 6 ECO-FIX
2333402 CAUTION LABEL SMALL
2334497 PROBE SYMBOL ON FRNT CVR
Front Cover
To Next Page
