8-72 Section 8-7 - RX Board (FRU P/N: 5315027)
8-7-1 Flexi Cable (MST to TX) Assy (FRU No.5315109)
This is a description on how to remove and replace the TX Board or Flex cable.
8-7-1-1 Tools
• Common Phillips screwdrivers
8-7-1-2 FRU BOM. This FRU Kit P/N:5315109 consists of following parts.
8-7-1-3 Needed Manpower
• 1 person, 30 minutes
8-7-1-4 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-7-1-5 Removal Procedure
1) Remove the connector board assembly. Refer section 8-6-2 on page 63
2) Loosen the Five screws (1,2,3,4,5,) of TX board from the system. Refer Figure 8-59 on page 8-67
3) Remove the Tx board from the system. Refer Figure 8-59 on page 8-67

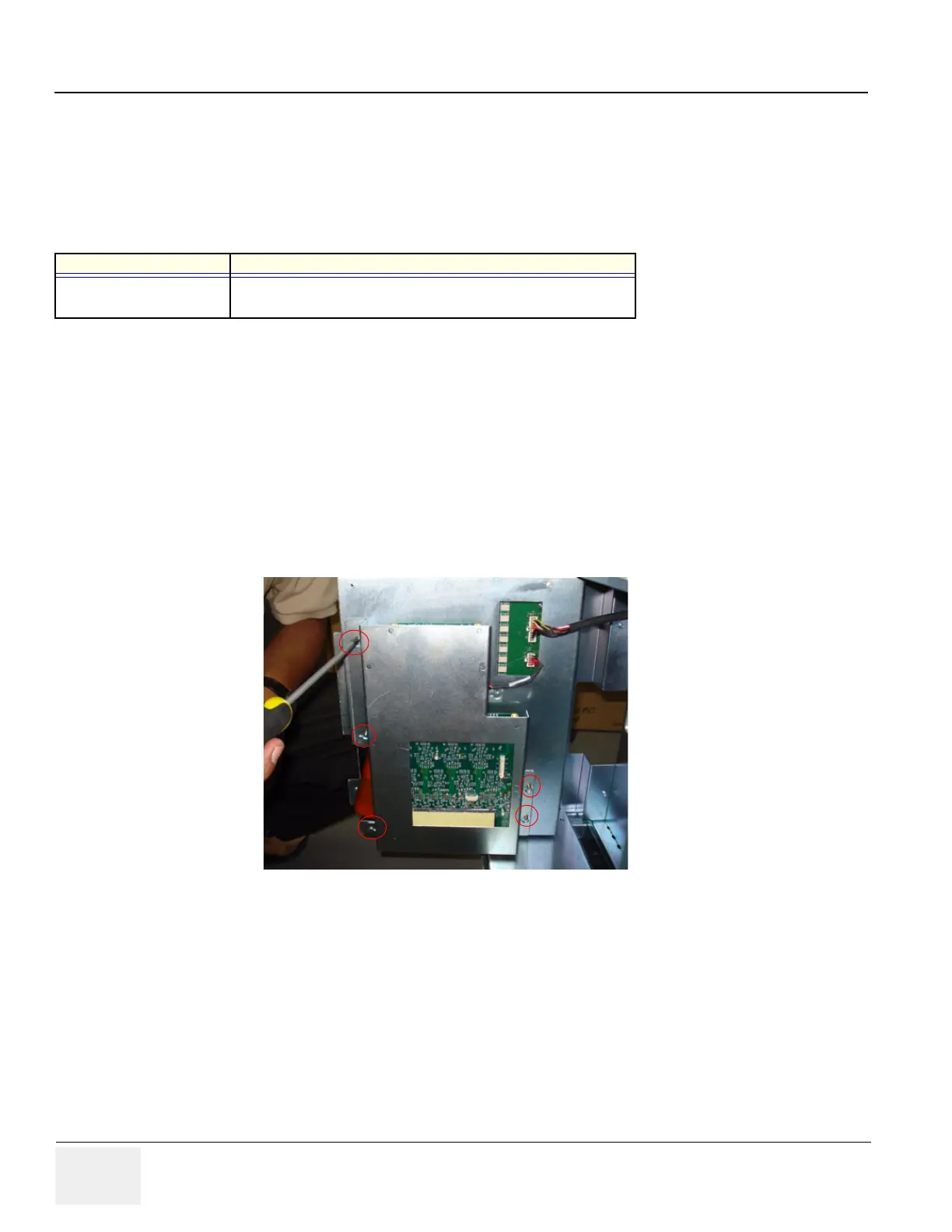

Figure 8-63 TX board Assembly
PART NO DESCRIPTION
5268515 Flexi Cable (MST to TX)
5314200 Fastener-M2X3 PAN PHILIP M/C SCREW (P1/P2)
1
2
3
4
5
To Next Page
