GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-73
3) Pull the Tx board from the system as shown below in Figure 8-60 on page 8-69
4) Remove the Tx conn board cable. Refer Figure 8-61 on page 8-70
5) Remove the two flexi cable from TX board as shown below in Figure 8-64 on page 8-73

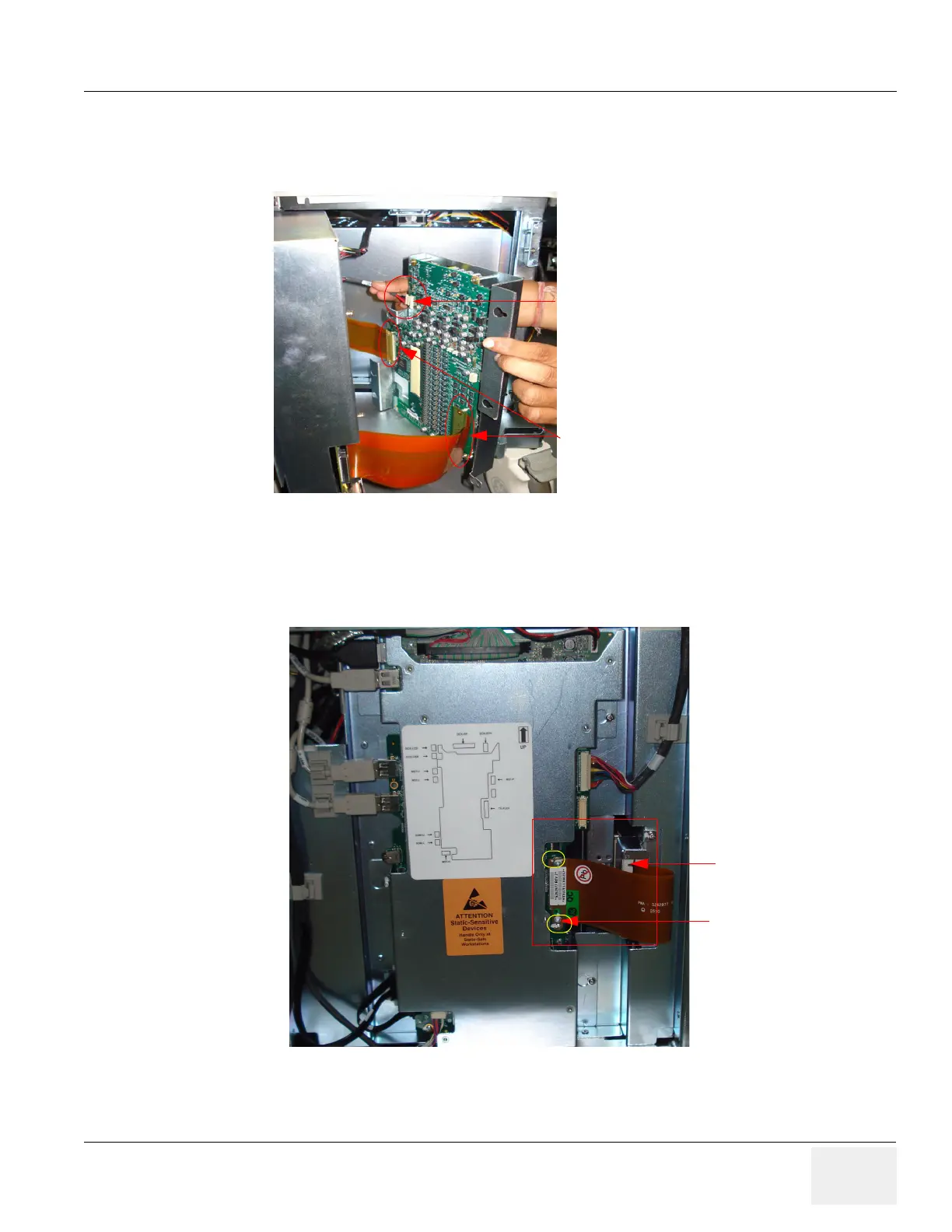

Figure 8-64 Removing TX conn board cable & Flexi cable
6) To remove the Fex cable remove one side from connector board & other side on TX PWA.
7) Use screwdriver to remove the screws of MST to TX flexi cable and remove the core. Refer Figure
8-65 on page 8-73
Figure 8-65 Removing Flexi cable of MST board
Tx conn board cable
Flexi cable
Screws
Core
To Next Page
