GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-10 Section 8-2 - Disassembly/Re-assembly of VIVID P3
8-2-6 Handle P3 Console (FRU P/N :5315120) (cont’d)
3) Using the allen key set remove Handle P3 console by unfastening the two socket head fasteners
marked (1,2,3) in the Figure 8-8 on page 8-10

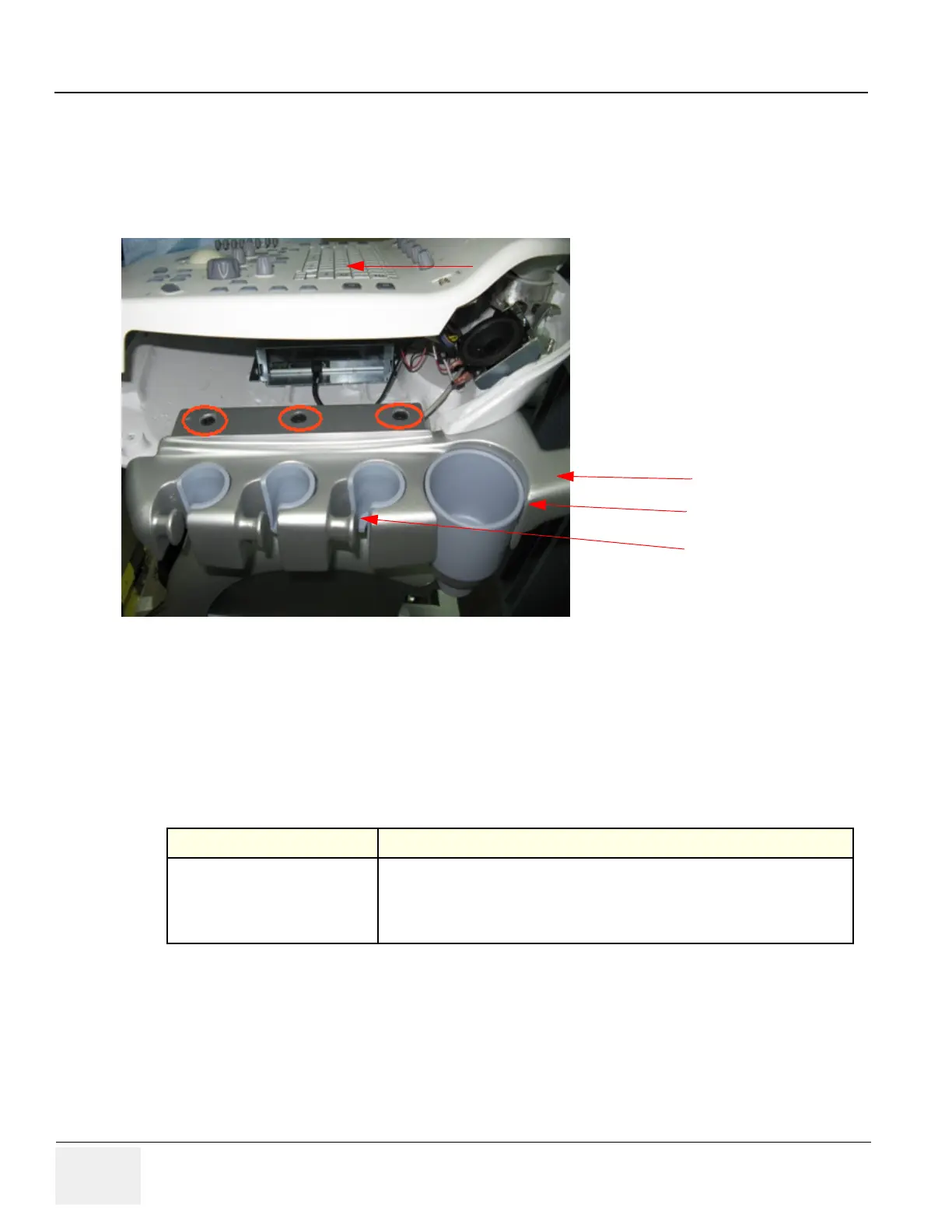

Figure 8-8 Handle P3 console
8-2-6-6 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-2-6-7 Functional Checkout Procedure
Functional Test Debrief Script
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
Service Manual Direction 5344303-100, Section 8-2-5. Equipment passes all required
tests and is ready for use.
handle P3 console
Gel holder
Probe holder
