GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 55344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 5 Components and Functions (Theory) 5-7
5-1-6 External I/O

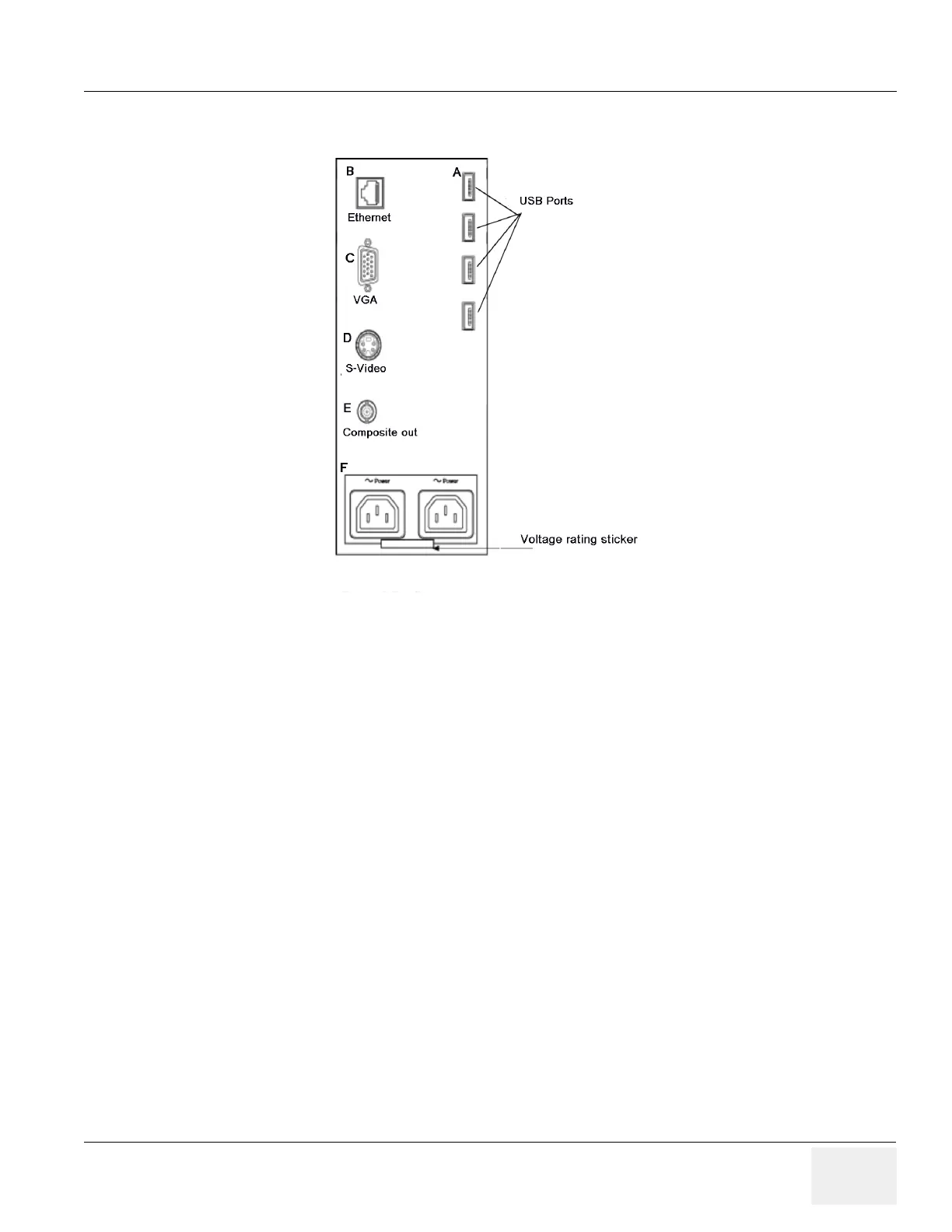

Figure 5-5 External I/O module overview
External I/O:
The external I/O is the interface between the scanner and all external items. Examples: Network, USB
interface medical grade printer and external medical grade SVGA displayer.
5-1-7 Peripherals
DVR, Color printer, Footswitch, VGA monitor, TV and a Black & White Printer and Bluetooth printer can
be connected to the external I/O.
