8-12 Section 8-2 - Disassembly/Re-assembly of VIVID P3
8-2-7 Keyboard Assembly (FRU P/N :5340674) (cont’d)
1) Unscrew the three screws (A,B,C) of keyboard bottom cover of the system.
Refer Figure 8-9 on page 8-12

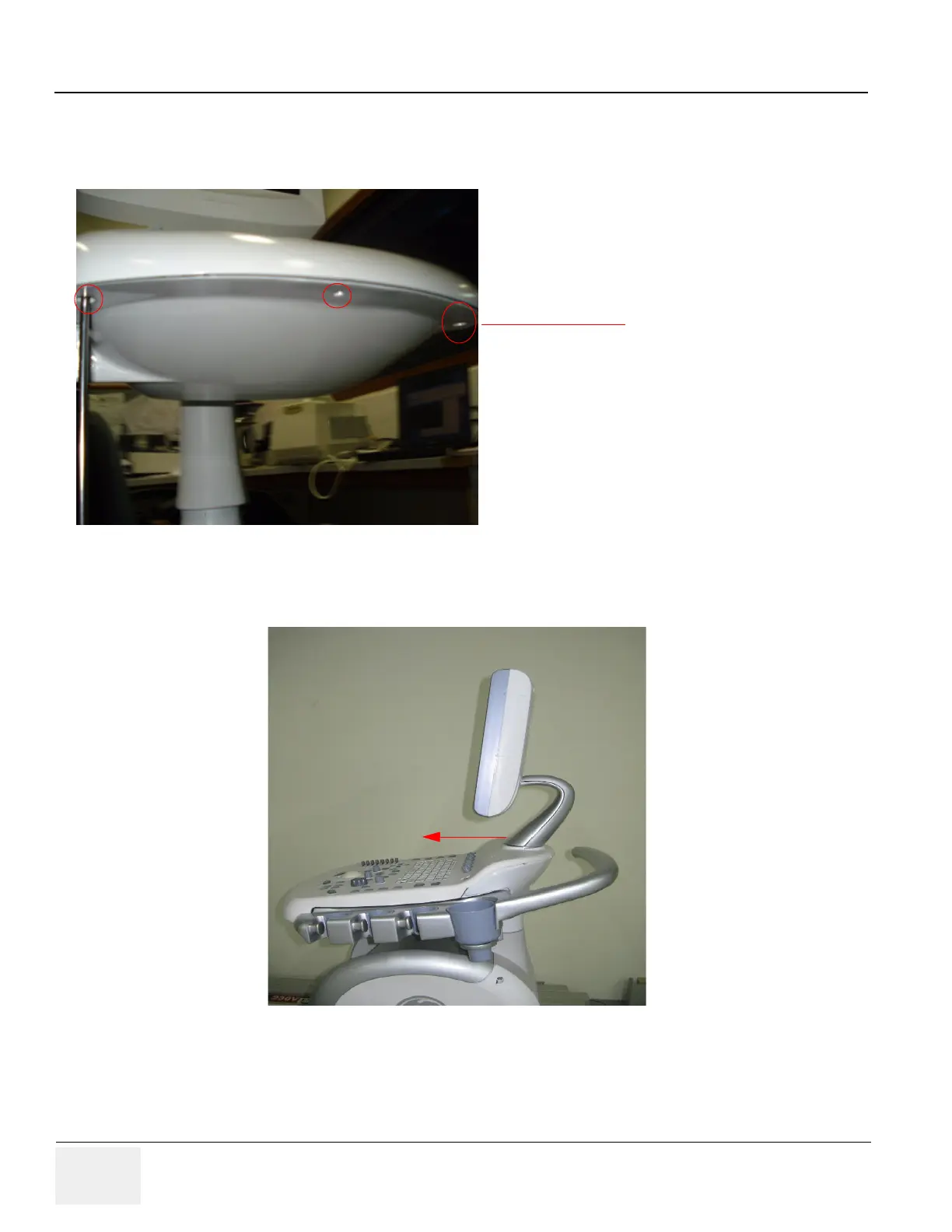

Figure 8-9 keyboard Bottom view
2) Lift or Pull the Keyboard Top view Assembly of Vivid P3 system. Refer Figure 8-10 on page 8-12
Figure 8-10 Move the keyboard out in the given direction
Remove three screws
To Next Page
