3-20 Section 3-6 - System Configuration
B.) Mount the Sony UP-D897 printer to the VGP-UP-D 897-Mounting-Bracket using Four M3 x 8 scews
as indicated below.

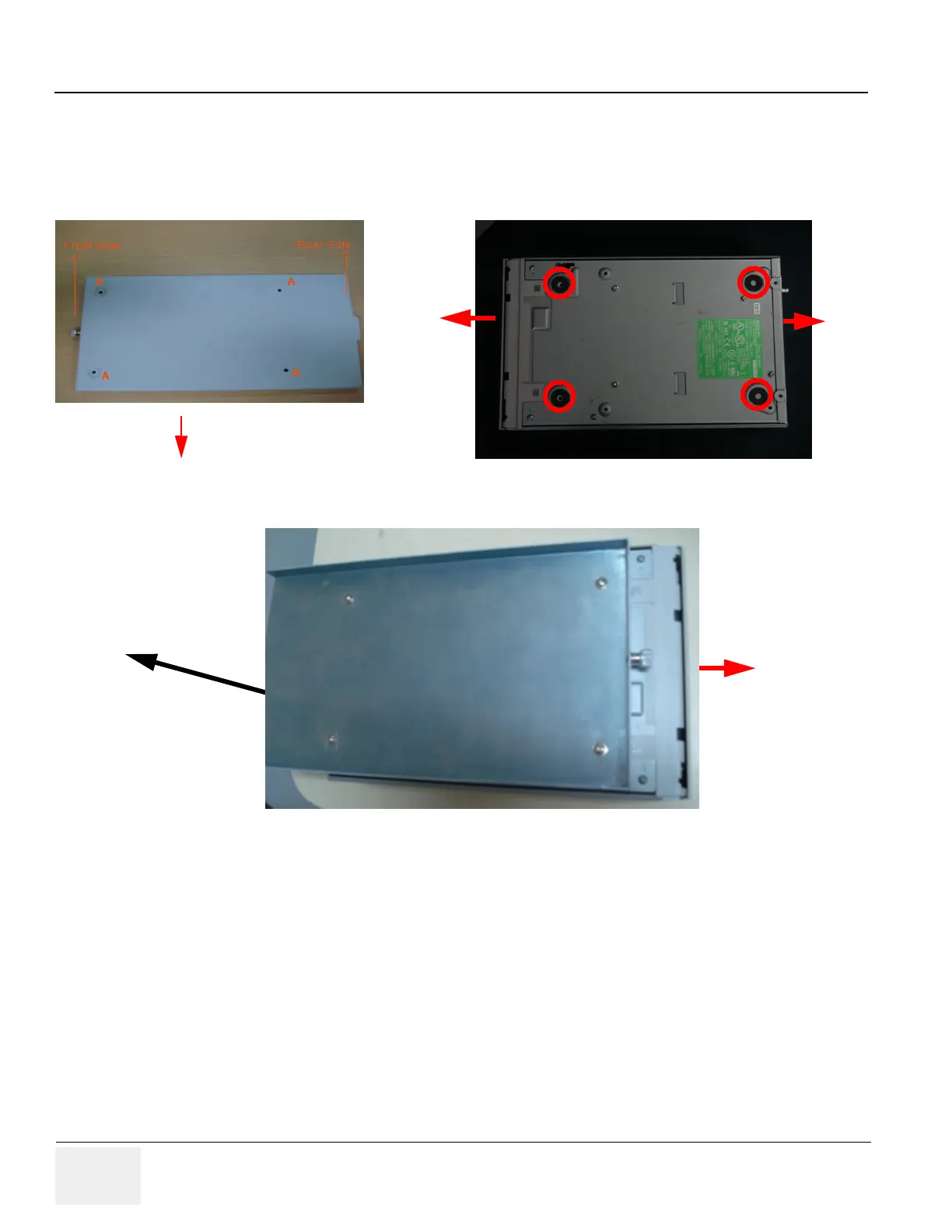

Figure 3-13 Mounting of VGP Tray to Printer
A
A
AA
Mounting the bracket to the printer by using M3X8 Screws
Front Side Of
the Printer
VGP-UP897-Mounting-Bracket(5314101)
Rear Side of the Printer
A- Indicates the location of the mounting holes on
the VGP-UP-D897-Mounting-Bracket
B
B-Indicates the location of the mounting holes on the
Printer.
Front side
of the
Printer
Rear
Side of
the
printer.
B
BB
