8-76 Section 8-8 - Power Block
4) Pull out the transformer tray assembly from the system. Refer Figure 8-67 on page 8-76

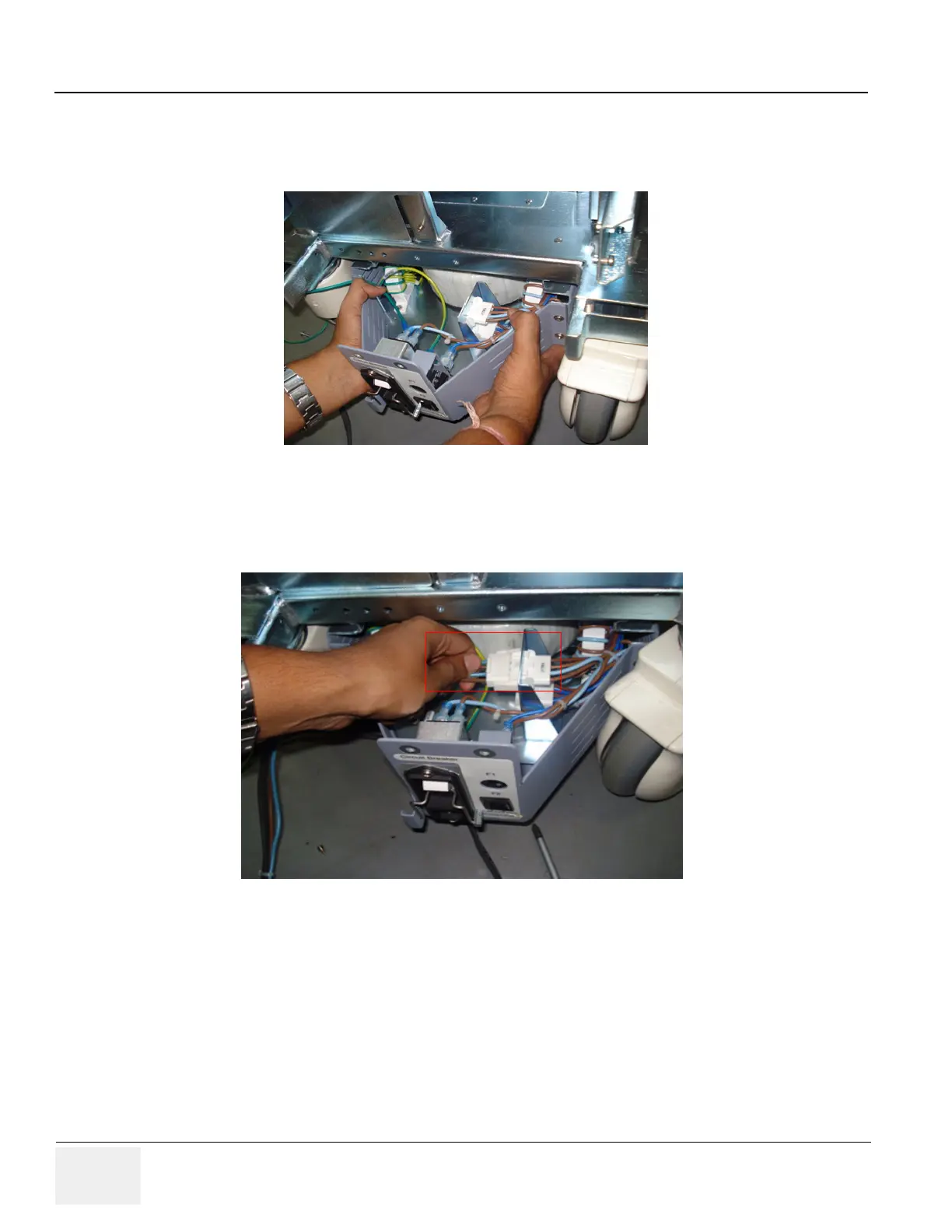

Figure 8-67 Removing Tansformer Assembly
5) Pull out the transformer tray so the connector marked J4 is accessible and disconnect cable.
Refer Figure 8-68 on page 8-76
Figure 8-68 Removing Transformer cable
