IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
3-6 Section 3-2 - Receiving and Unpacking the Equipment
Section 3-2 Receiving and Unpacking the Equipment (cont’d)
7.) Remove the Plastic Wrapping around the VIVID
TM
P3.
8.) Remove the Monitor Support and Monitor Packing.
9.) Remove the adhesive tapes attached at the four corners of the Top Cover.
10.)Put the Ramp Board on floor and prepare the slope to put the console down.
11.)Unlock the brakes on the front castors, then carefully put the console off the Palette.

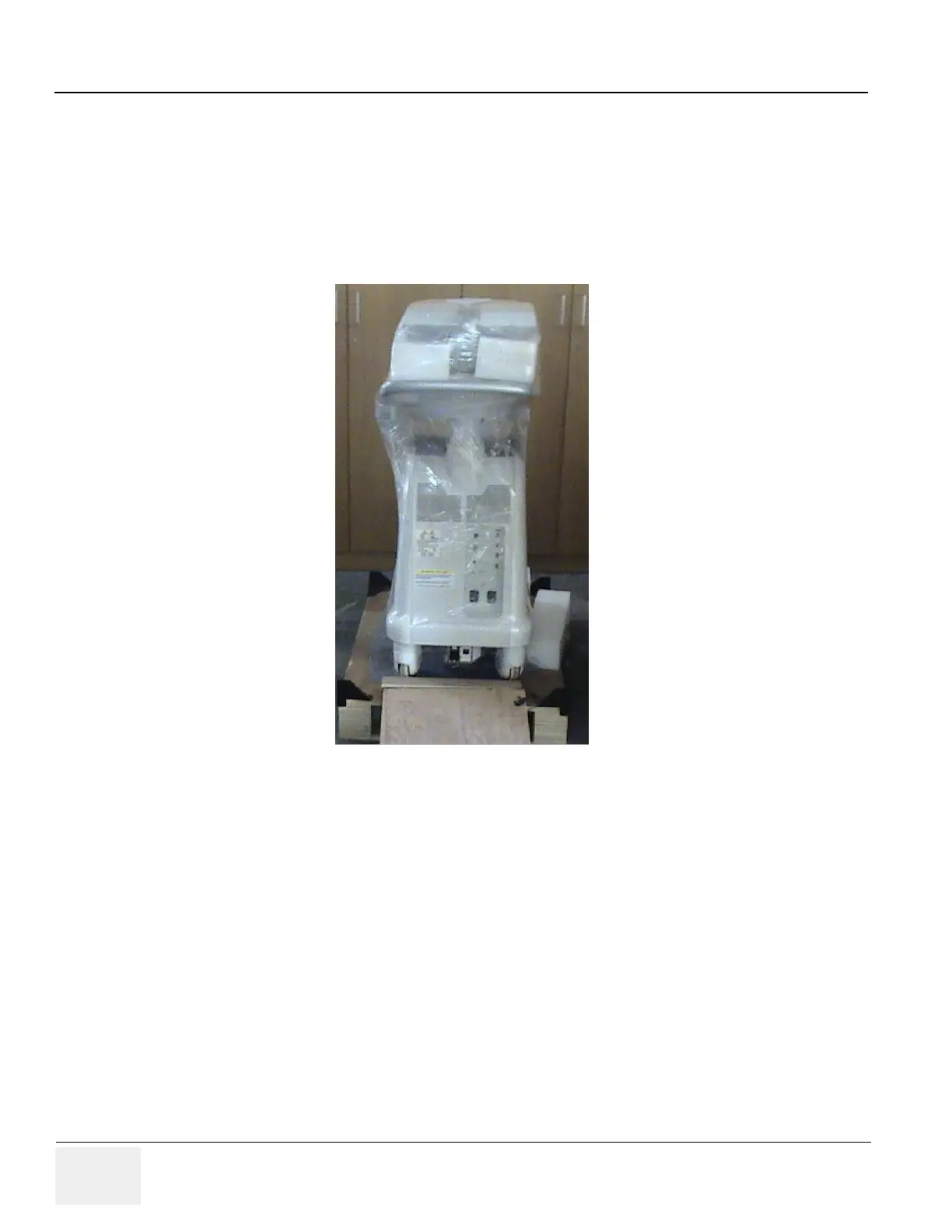

Figure 3-5 Removing System from the Pallete
