39
ENGLISH
Chapter 5 Parameter Sengs
Step 1: rotate the knob to move the gray cursor to the seng item and press the knob to conrm your selecon.
Step 2: rotate the knob to change the seng or modify the seng value.
Step 3: press the knob again to change and repress it to save the seng.
Pressing “ ” key to return to the Main Screen.
Long pressing Navigaon Knob to enter into “System Menu” screen.
5.1 System Parameter Sengs
On “System Menu” screen, select “Setup”→“SYS” to enter into system related sengs.

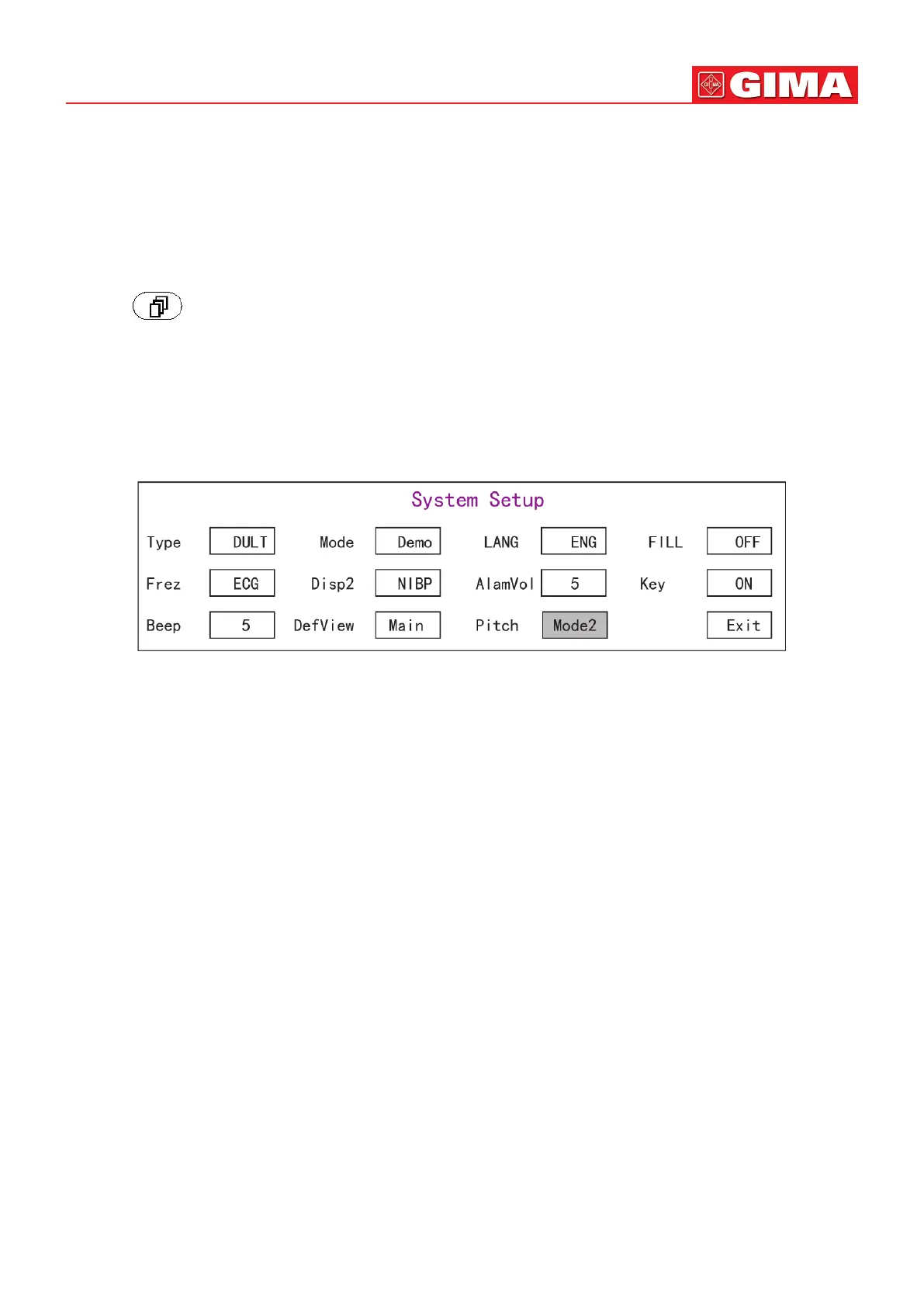

Figure 5.1 System Setup
Type: The category of paent being monitored, this can be selected from Adult, Pediatric and Neonate.
Adult: the paent is adult.
Pediatric: the paent is pediatric.
Neonate: the paent is neonate.
The default is “Adult”
When changing the paent type, the monitor will change the default alarm sengs, and inialize the NIBP
and SpO
2
measuring module accordingly. Please pay special aenon to the paent type before starng the
monitoring. It is forbidden to use Adult type on the Pediatric paent, or it may cause serious injury.
Mode: Monitor working mode selecon. The “Real Time” shows the normal working mode with real me waveform
and data. The “Demo” shows the demo working mode with demo waveform and data. In the demo mode, all the
signals and data are generated by the device for demonstrang and tesng purpose. The default is “Real Time”
LANG: The current language used, which can be selected by the user. There is no default for this seng. However,
the seng can be saved.
Fill: When the ll seng is ON, the plethysmogram and respiraon waveform will be displayed with lled curves.
When it is OFF, the monitor displays the line graph. The default is OFF.
Frze: Pressed the key to freeze the selected waveforms. The opons are “All” and “ECG”. When “ECG” is selected,
the monitor only freezes the ECG waveform. When “All” is selected, the monitor freezes all the waveforms including
ECG, plethysmogram, and respiraon waveform. The factory default is “ECG”
To Next Page
