6064. Press Knob to make the new seng eecve.
HL7: enable the monitor to export data to CIS/HIS by HL7 protocol. The user can select “HL7” or “CEN”(means central
monitoring system) for oponal.
5.3 ECG Related Sengs
On “System Menu” screen, select “Setup”→“ECG” to enter into ECG related sengs.

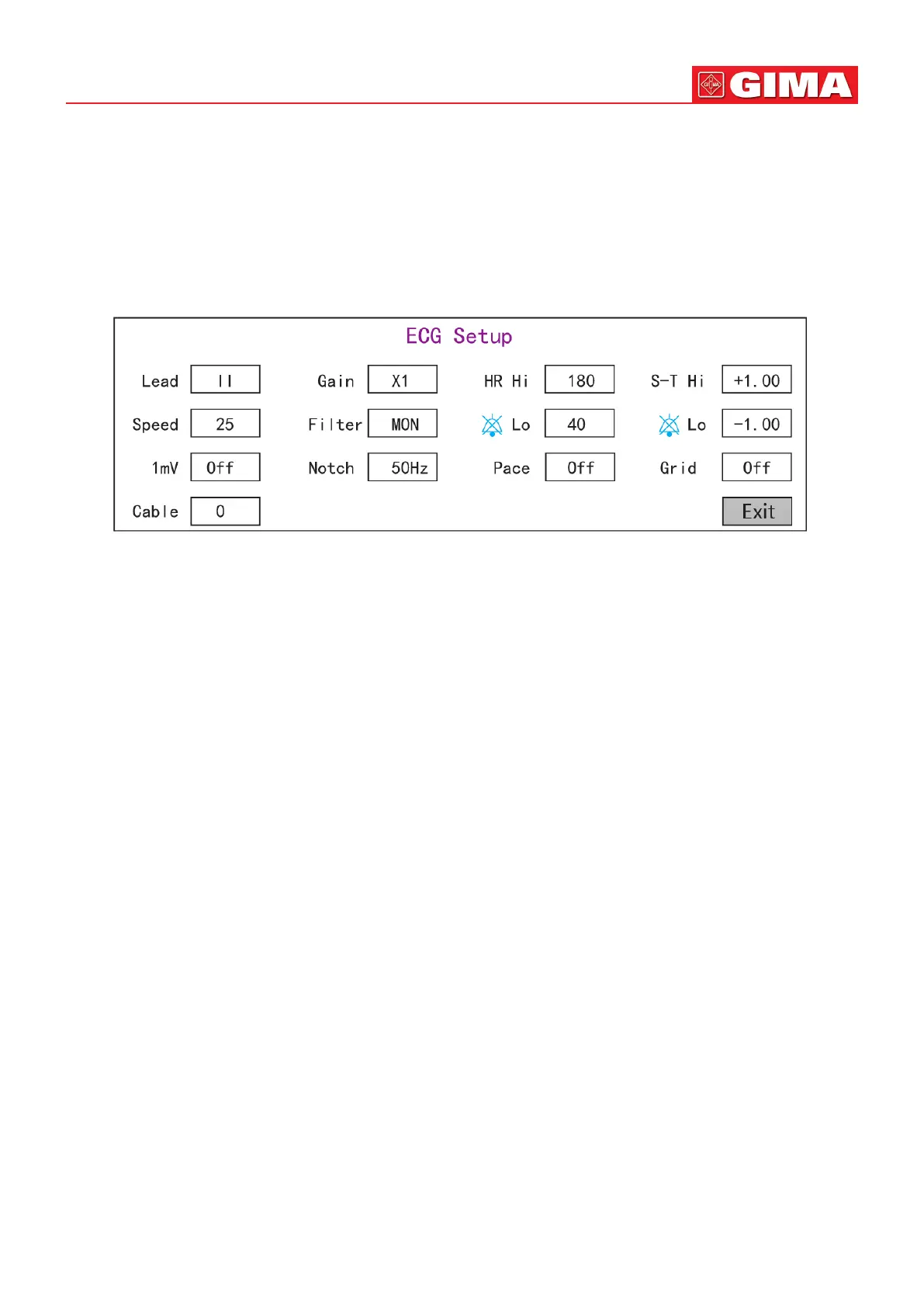

Figure 5.3 ECG related sengs
Lead: Can be chosen among Lead I, II, III, aVR, aVL, aVF, and V (V1-V6). The default is I.
Gain: The ECG gain, 6 opons x1/4, x1/2, x1, x2, x4 and Auto. Auto is for automac gain control. The factory default
is x1
HR Hi: High limit alarm for heart rate
Lo: Low limit alarm for heart rate
The adjustable range and the factory default value can be found in Alarm Secon
Speed: ECG waveform sweeping speed. 4 opons: 6.25, 12.5, 25, 50 mm/s. The factory default is 25 mm/s
Mode: ECG ltering mode. Three opons: MON, DIA, and OPE
MON: Monitoring mode. Moderate ltering, it can lter out interference and present good ECG waveforms.
DIA: Diagnosis mode. No ltering, represent the true ECG signal without ltering.
OPE: Operaon mode. Deep ltering, it can lter out strong interference.
The factory default is MON.
1mV: Generang the 1mV calibrang signal. This signal is used to test the ECG funcon of the device. It is not used
during normal operaon. Factory default is OFF
Notch: frequency lter. Dierent hardware conguraon may make its opons various. One is “ON”/ “OFF” (The
factory default is ON.), and it means turn on or turn o the 50Hz frequency lter. The other opon is “OFF”/ “50 Hz”/
“60 Hz”, please choose “50 Hz” or “60 Hz” frequency lter according to your power supply frequency. The factory
default is “50 Hz”.
Pace: Cardiac pacemaker pulse detecon. When Pace is “ON”, the funcon of pacemaker pulse detecon will be
eecve. A mark will be displayed on the ECG waveform if the pacemaker generates a pacing pulse when the paent
wears a cardiac pacemaker. The factory default is OFF.
To Next Page
