2.3 Display Screen
Generally, when there is no pop-up window on the screen, the screen layout of the device includes informaon area,
Waveform area and Parameter area, as shown in below Figure. Informaon area is on the top of the screen; Parameter
area is on the right of the screen and Waveform area is on the le.
When a new window pops up, this will become is the current operable window displayed on top layer. To return to the
main screen press the Disp. buon “ ”.

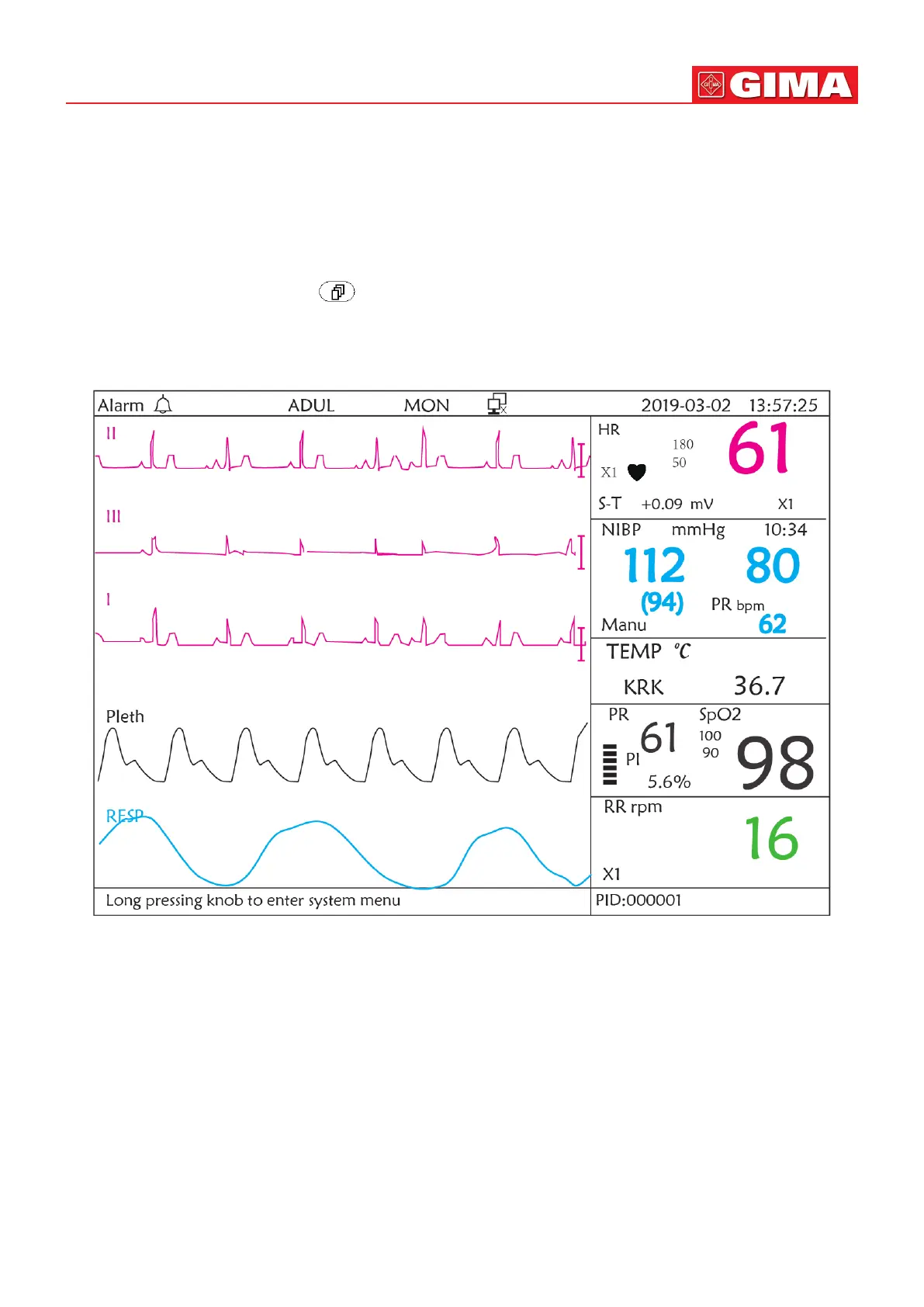

Screen layout (refer to actual screen)
Waveform area
Waveform 3
Parameter 5
Parameter 4
Parameter 3
Parameter 2
Parameter 1
Informaon area Parameter area
Waveform 4
Waveform 5
Waveform 2
Waveform 1
