 “ECG”: parameter label.
 “III”: ECG lead. III means ECG lead III.
 “25mm/s”: ECG waveform sweeping speed, unit is “mm/s”.
 “X1”: ECG waveform gain. “X1” means the waveform scale with base gain. Refer to Secon 3.1 for details.
 “MONI”: ECG ltering mode. There are three types: diagnose, monitoring and operaon. Refer to Secon
3.1 for details.
 “S-T+0.02mV”: S-T segment value, here indicates the value is 0.02mV.
Heart Rate Panel:

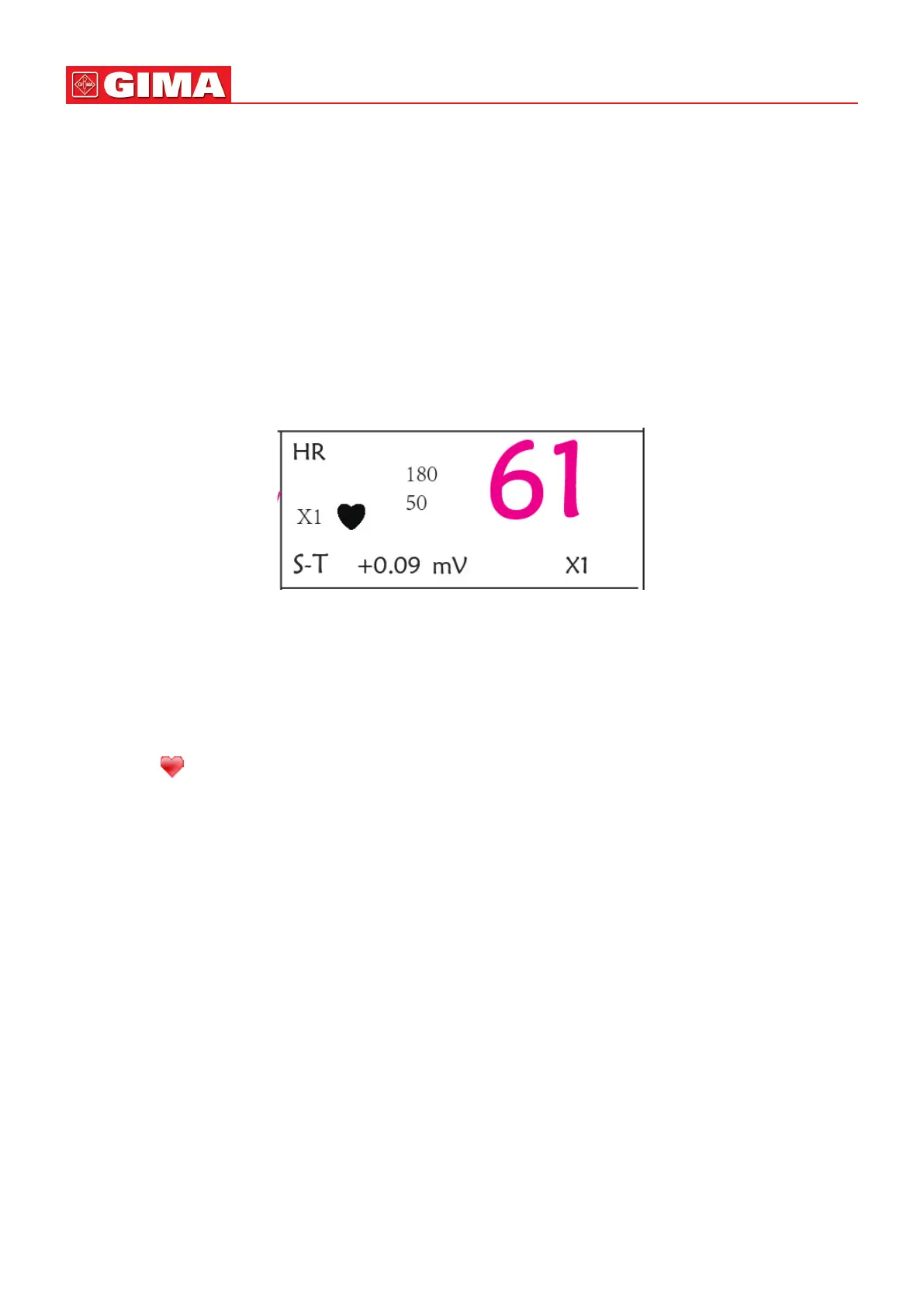

Figure 4.5 Heart Rate Panel
 “HR”: heart rate. The 61 on the right is the heart rate measured.
 “bpm”: the unit of heart rate, it means “beats per minute”.
 “ ”: the heart-beat symbol, blinks corresponding to the R wave of ECG waveform. The ashing speed is
the same with the heart rate
 “180/50”: high and low alarm limit seng for heart rate.
 “ST+0.09mv”: the measured mili-volts value for S-T segment level.
 “X1”: ECG waveform gain (amplicaon), available opons are:
“Auto” Automac waveform scale.
“×1/4” 1/4 scale size of the base gain.
“×1/2” Half scale size of the base gain.
“×1” Waveform scale with the base gain.
“×2” Twice scale size of the base gain.
“×4” Four mes scale size of the base gain
