the nger to be placed evenly on the middle base of the sensor. Direct the cable along the top of the paent’s hand. Apply
adhesive tape to secure the cable if necessary.

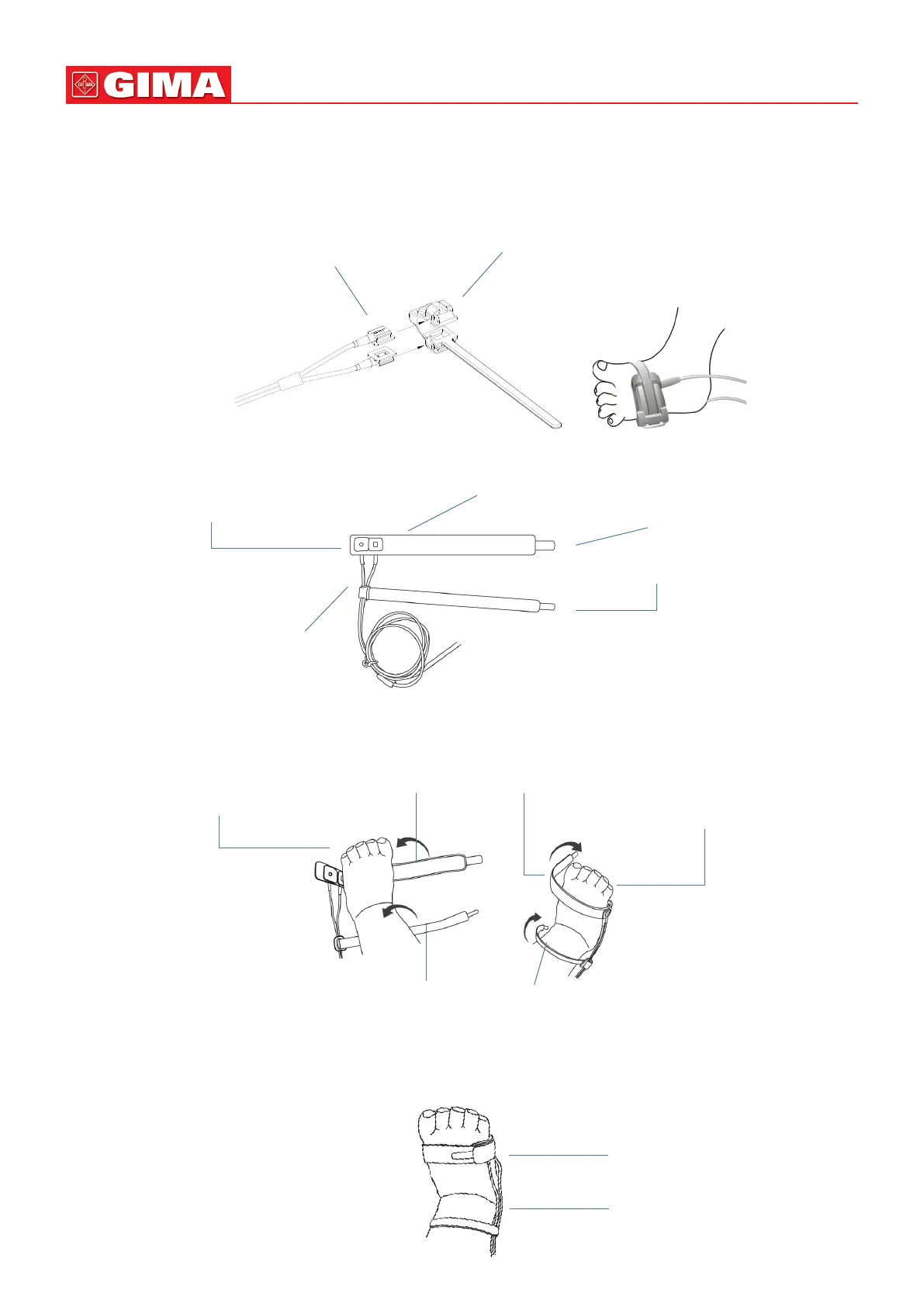

Type 4: Y-type Adjustable Neonate SpO
2
Sensor
Type 5: Y type Neonate SpO
2
sensor
For proper placement on foot, place the sensors on the outside of the foot behind the pinky toe. Make sure the
sensor touch the skin closely, then secure the foot wrap with Velcro. Do not over-ghten
Le foot (wrap goes under the foot) Right foot(wrap goes from top of the foot)
Use the ankle wrap to secure the sensor cable on the ankle or leg. Do not over-ghten
Sensor adapter: wrapper
Y type sensor
Receiver (square)
Foot wrap
Light source (round )
Ankle wrap
Y type sensor
Foot wrap
Foot wrap
Pinky toe
Pinky toe
Ankle wrap
Ankle wrap
Ankle wrap
Foot wrap
