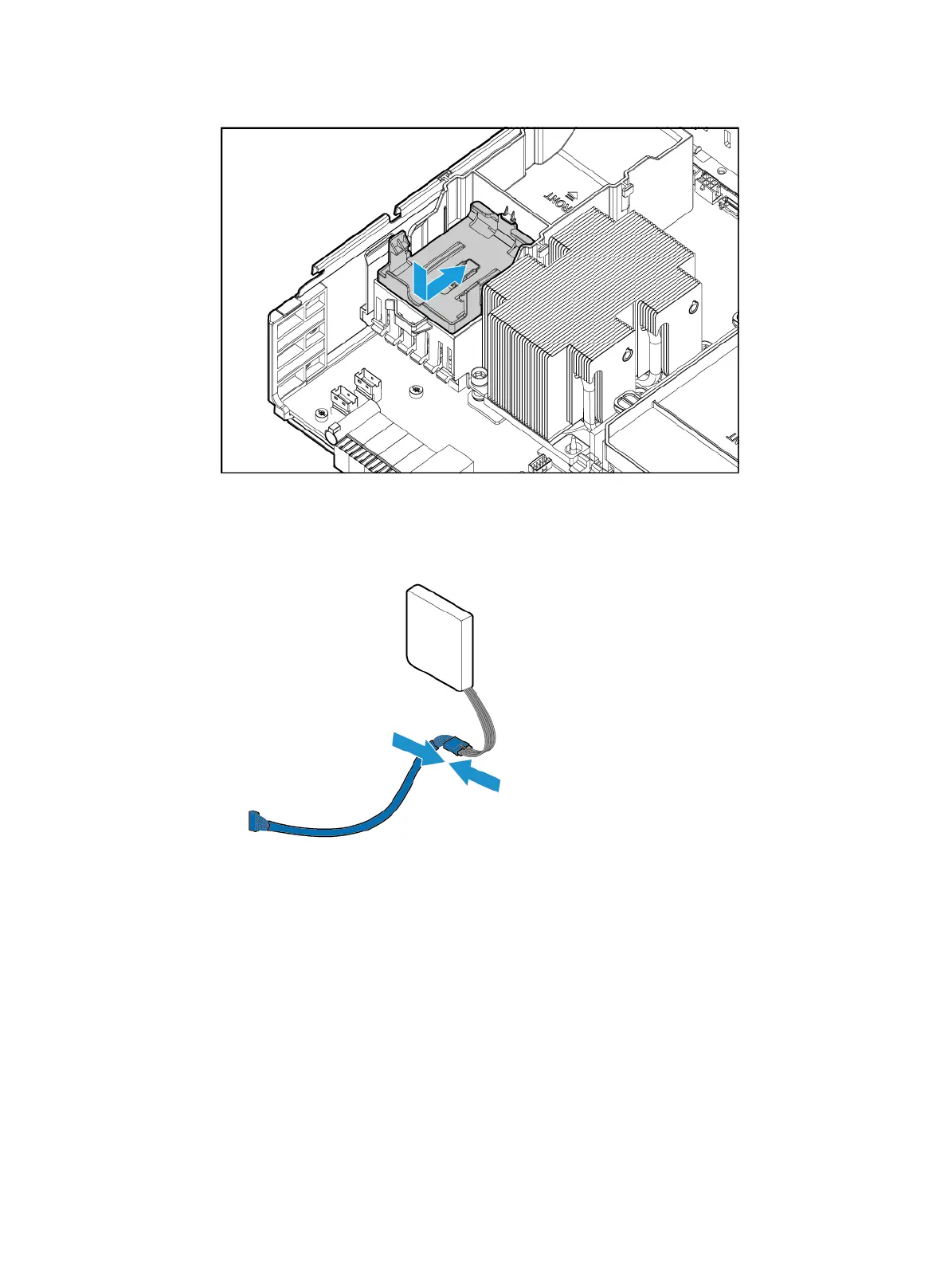

Figure 6-25 Installing the supercapacitor holder
e. Connect one end of the supercapacitor cable (P/N 0404A0VT) provided with the flash card
to the supercapacitor cable, as shown in Figure 6-26.
Figure 6-26
Connecting the supercapacitor cable
f. Insert the cableless end of the supercapacitor into the holder. Pull a clip on the holder, insert
the other end of the supercapacitor into the holder, and then release the clip, as shown in by
callouts 1, 2, and 3 in Figure 6-27.
g. Con
nect the other end of the supercapacitor cable to supercapacitor connector 1 on the
compute module main board, as shown by callout 4 in Figure 6-27.
