6-23

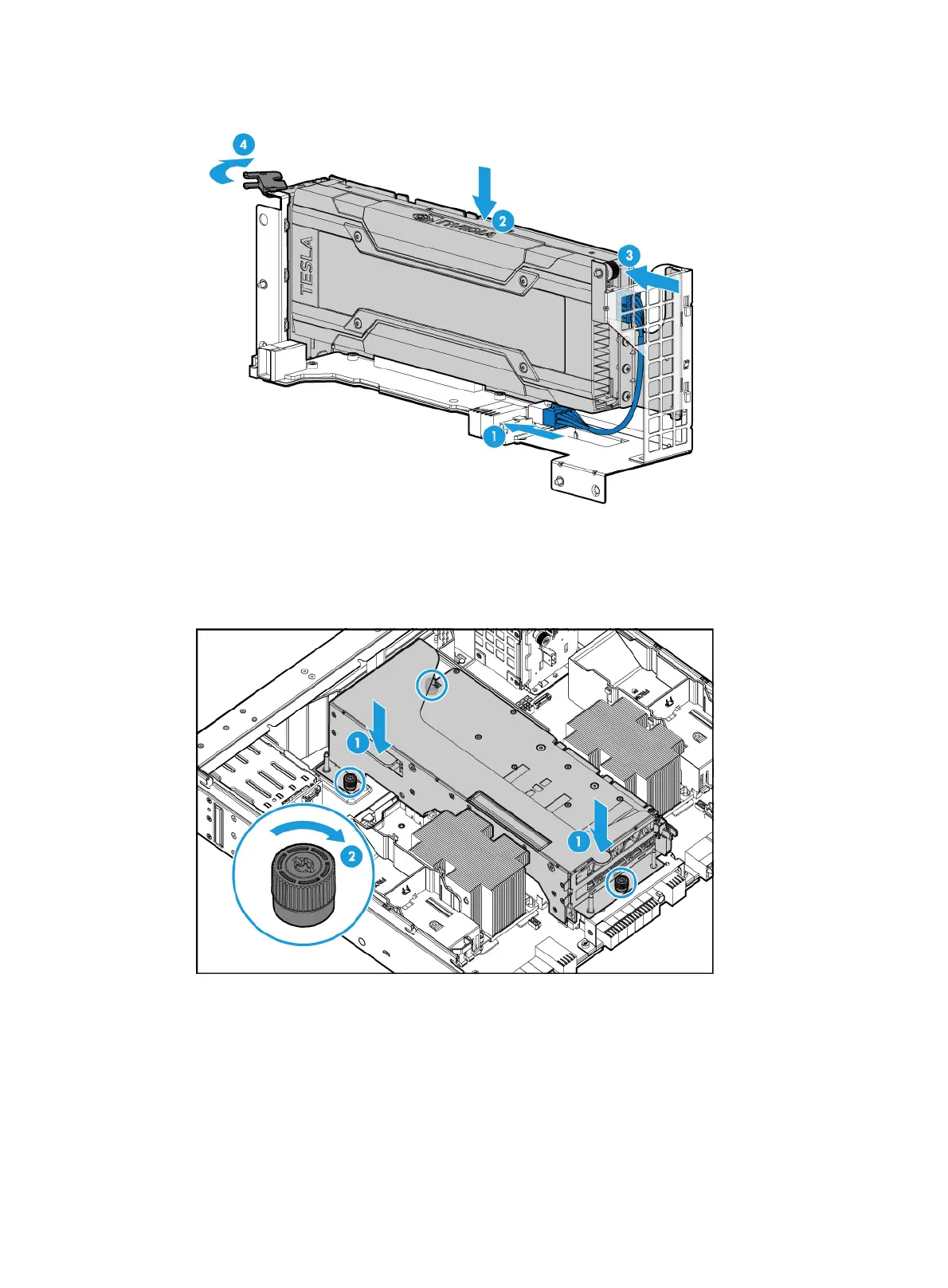

Figure 6-29 Installing a GPU module
9. Install the riser card on PCIe riser connector 0. Align the pin holes on the riser card with the
guide pins on the main board, and place the riser card on the main board. Then, fasten the
captive screws to secure the riser card into place, as shown in Figure 6-30.
Figure 6-30
Installing the riser card
10. Install the compute module access panel. For more information, see "Replacing a compute
module access panel."
11. Install the compute module. For more information, see "Installing a compute module."
12. Install the removed security bezel. For more information, see "Installing the security bezel."
13. Connect the power cord. For more information, see "Connecting the power cord."
14. Powe
r on the server. For more information, see "Powering on the server."
