4. Install the mLOM Ethernet adapter to the riser card:
a. Remove the screw from the mLOM Ethernet adapter slot and then remove the blank, as
shown in Figure 6-31.

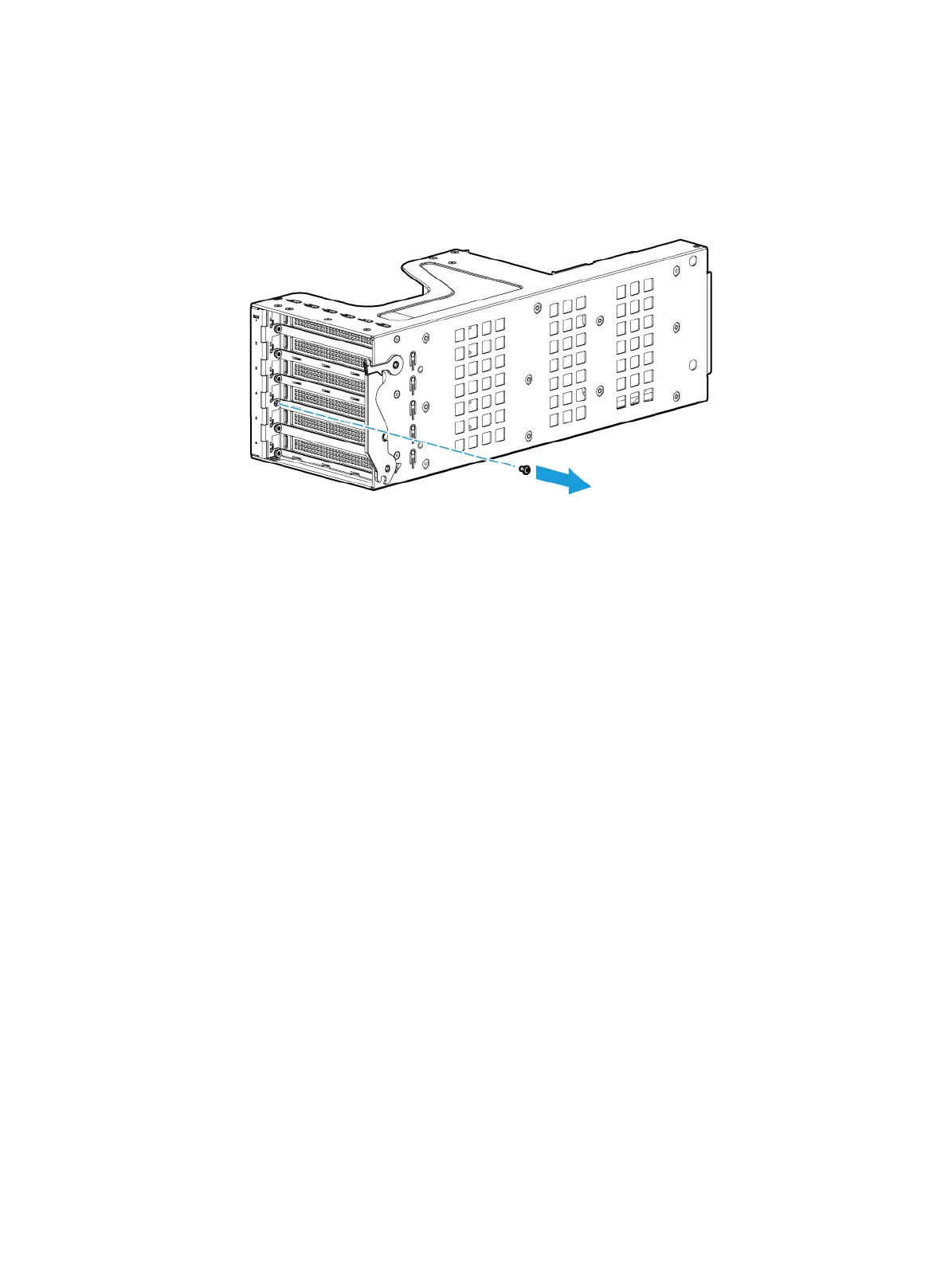

Figure 6-31
Removing the screw
b. Open the riser card cover. For more information, see "Installing riser cards and PCIe
modules at the server rear."
c. Remove the PCIe module in PCIe slot 4 on the riser card, if a PCIe module is installed. For
more information, see "Replacing a riser card and PCIe module at the server rear."
Remove the PCIe module blank, if no PCIe module is installed. For more information, see
"Installing riser cards and PCIe modules at the server rear."
d. Insert
the mLOM Ethernet adapter into the slot along the guide rails, and fasten the screw to
secure the Ethernet adapter into place, as shown in Figure 6-32. Then, clo
se the riser card
cover.
