6-46
To install a TPM:
1. Power off the server. For more information, see "Powering off the server."
2. Disco
nnect all the cables from the management module.
3. Remove the management module. For more information, see "Removing the management
module."
4. Install the TPM:

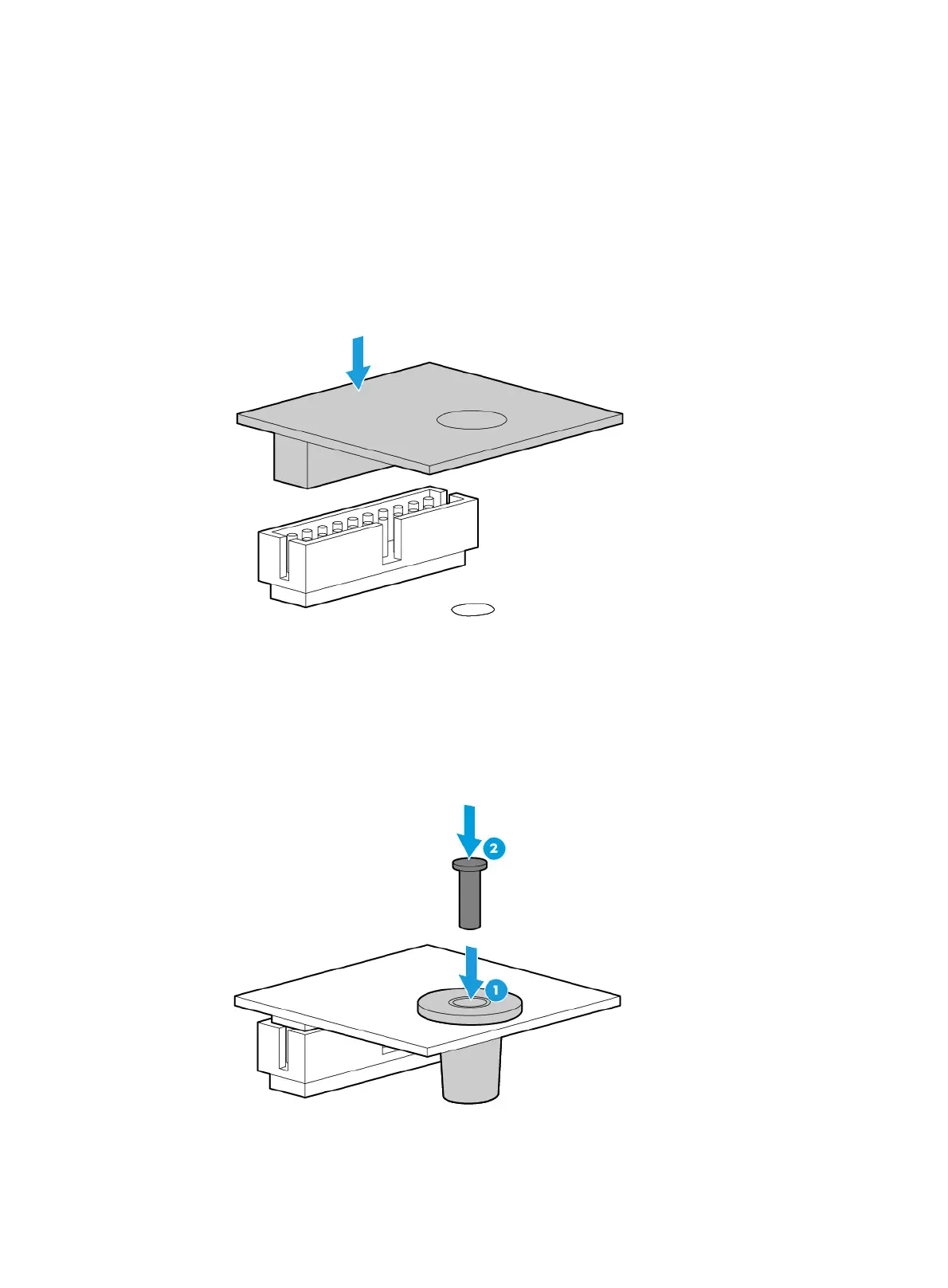

a. Press the TPM into the TPM connector on the management module, as shown in Figure
6-54.
Figure 6-54
Installing a TPM
b. Insert the rivet pin as shown by callout 1 in Figure 6-55.
c. Insert the security rivet into the hole in the rivet pin and press the security rivet until it is
firmly seated, as shown by callout 2 in Figure 6-55.
Figure 6-55
Installing the security rivet
