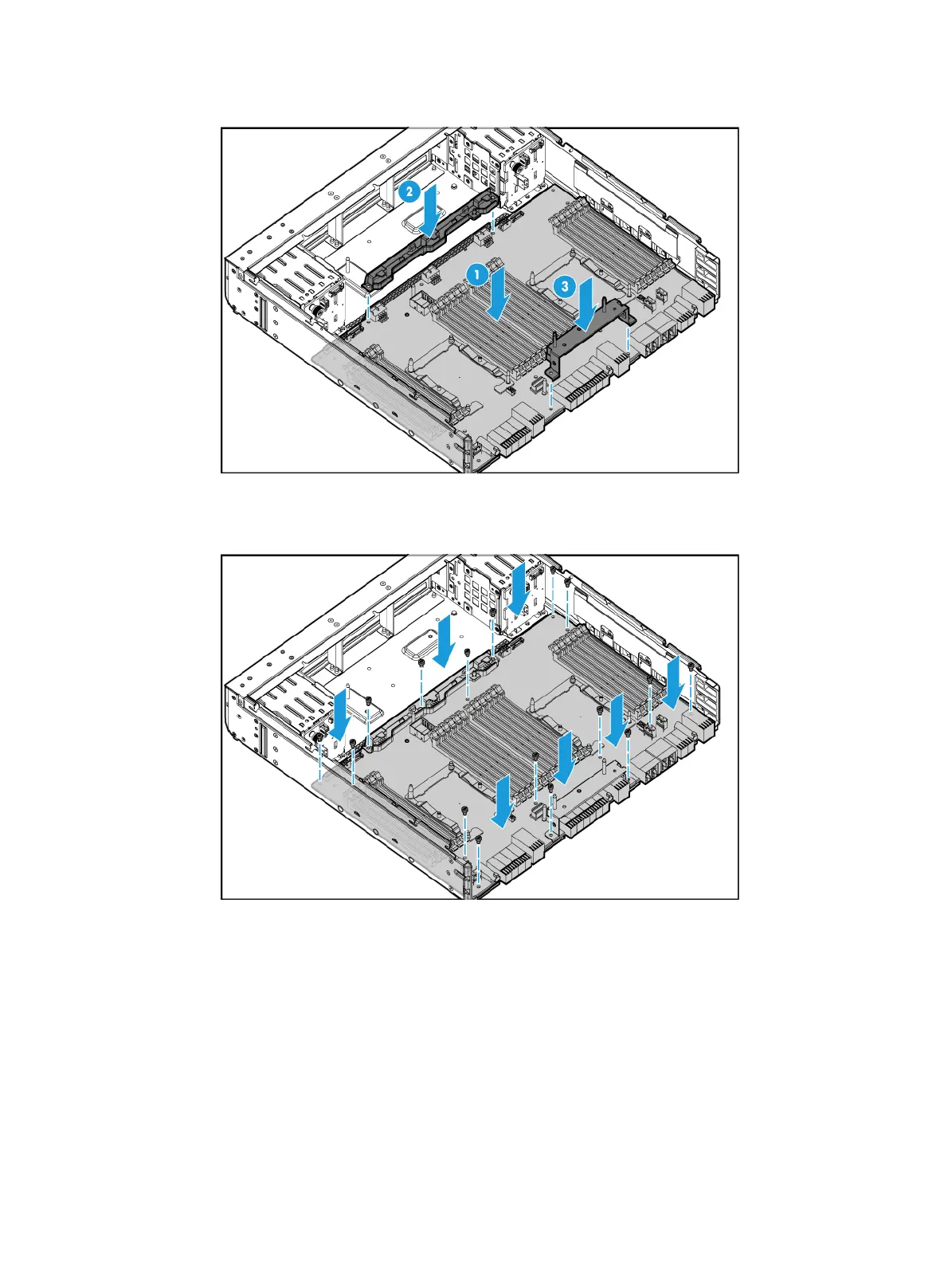

Figure 7-7 Installing the main board, cable clamp, and riser card bracket
c. Fasten the 16 screws on the main board, as shown in Figure 7-8.
Figure 7-8 Securing the screws on a main board
2. Install the components in the compute module:
a. Install drive backplanes. For more information, see "Installing a drive backplane."
b. Install pro
cessors and heatsinks. For more information, see "Installing processors."
c. Install DIMM
s. For more information, see "Installing DIMMs."
d. Install air baffles in the compute module. For more information, see "Replacing air baffles in
a comp
ute module."
e. (Optional.) Installing the riser card and PCIe module. For more information, see "Installing a
rise
r card and a PCIe module in a compute module."
f. Connect cables to the main board.
g. Install drives. For more information, see "Installing SAS/SATA drives."
