Configuring the RADIUS server (iMC v5)
NOTE:
The following takes the iMC (iMC PLAT 5.0 and iMC UAM 5.0) as an example to illustrate the basic
configuration of the RADIUS server.
1. Add an access device.
a. Select the Service tab in the iMC platform.
b. Select User Access Manager > Access Device Management from the navigation tree.
c. Click Add.
d. On the page that appears, enter the shared key 12345678, keep the default values for other
parameters, select or manually add the access device with the IP address 10.18.1.1, and click
Apply.

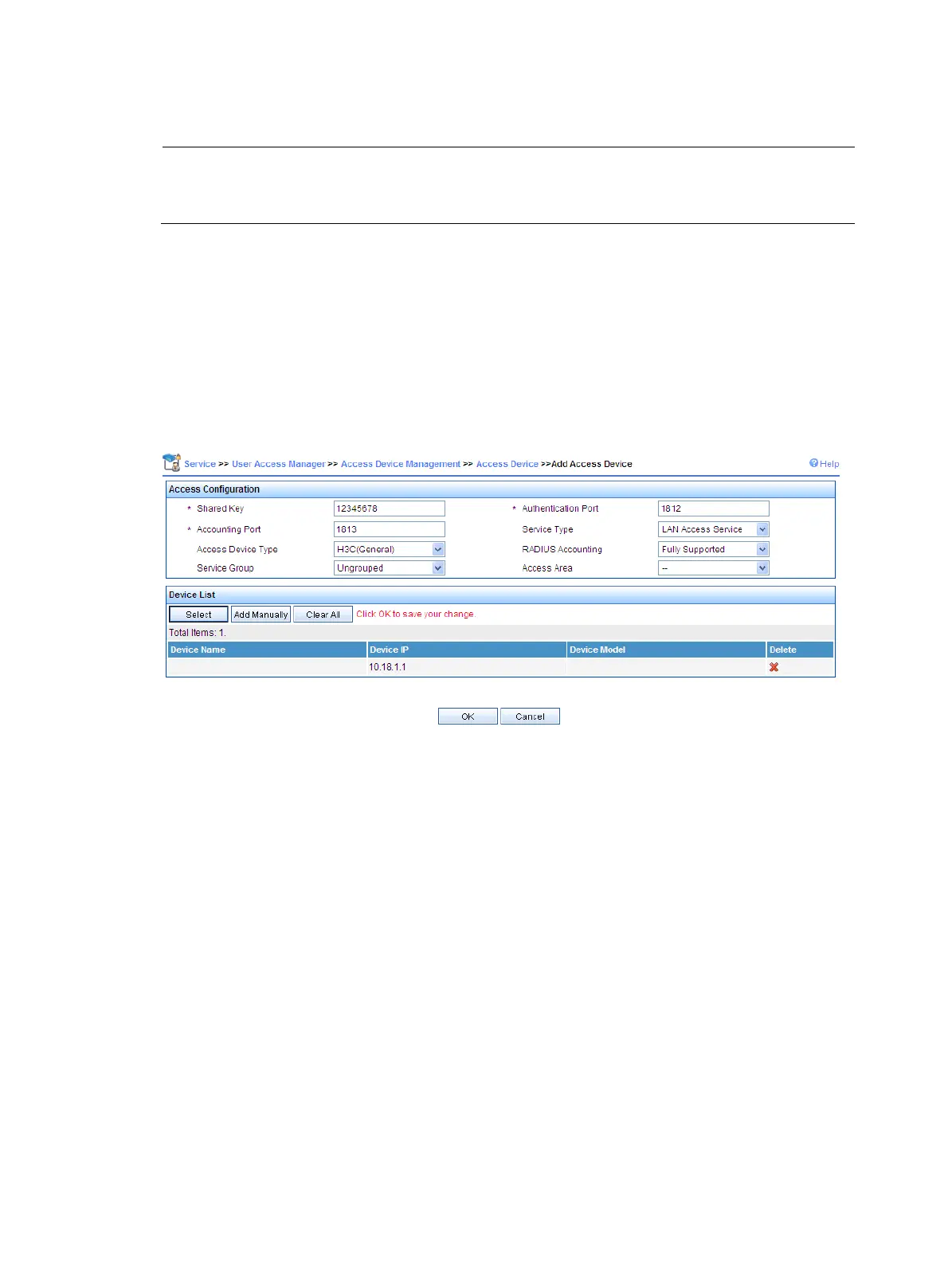

Figure 345 Add access device
2. Add a service.
a. Select the Service tab.
b. Select User Access Manager > Service Configuration from the navigation tree.
c. Click Add.
d. On the page that appears, set the service name to dot1x, set the Certificate Type to EAP-PEAP
AuthN and the Certificate Sub Type to MS-CHAPV2 AuthN, and click Apply.
