b. Click Add.
c. On the page that appears, enter the service name office, select the wireless service type clear,
and click Apply.
d. On the page that appears, enter 3 in the VLAN (Untagged) field, enter 3 in the Default VLAN
field, enter 1 in the Delete VLAN field, and click Apply.
Before you perform these VLAN settings, select Network > VLAN to create VLAN 3 first.

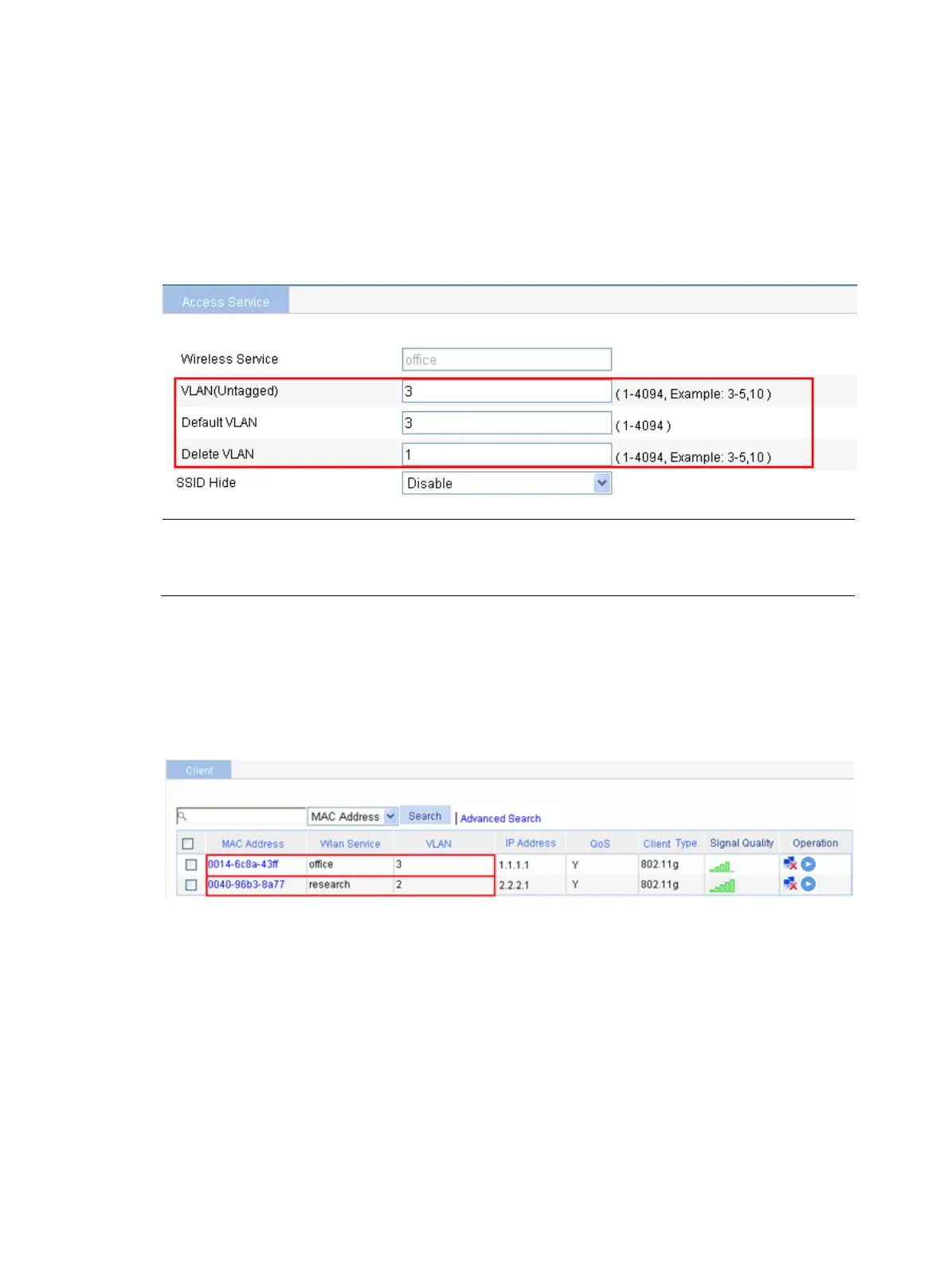

Figure 302 Set the VLANs
NOTE:
For wireless access configuration, see "Wireless access configuration examples." You can follow
the
ireless access configuration examples to configure wireless access.
Verifying the configuration
• The client can successfully associate with the AP and access the WLAN network.
• You can view the online clients on the page you enter by selecting Summary > Client from the
navigation tree.
Figure 303 View the online clients
The page shows that the client 0014-6c8a-43ff, which accesses the SSID office, is in VLAN 3, while the
client 0040-96b3-8a77, which accesses the SSID research, is in VLAN 2. The two clients are in different
VLANs, so they cannot access each other.
WPA-PSK authentication configuration example
Network requirements
As shown in Figure 304, it is required that the client access the wireless network by passing PSK
authentication. The WPA-PSK key configuration on the client is the same as that on the AP, that is,
12345678 .
