Quick Start

The Quick Start wizard leads you through basic configuration procedures to quickly make your device

available for use.

Quick Start wizard home page

From the navigation tree, select Quick Start to enter the home page of the Quick Start wizard.

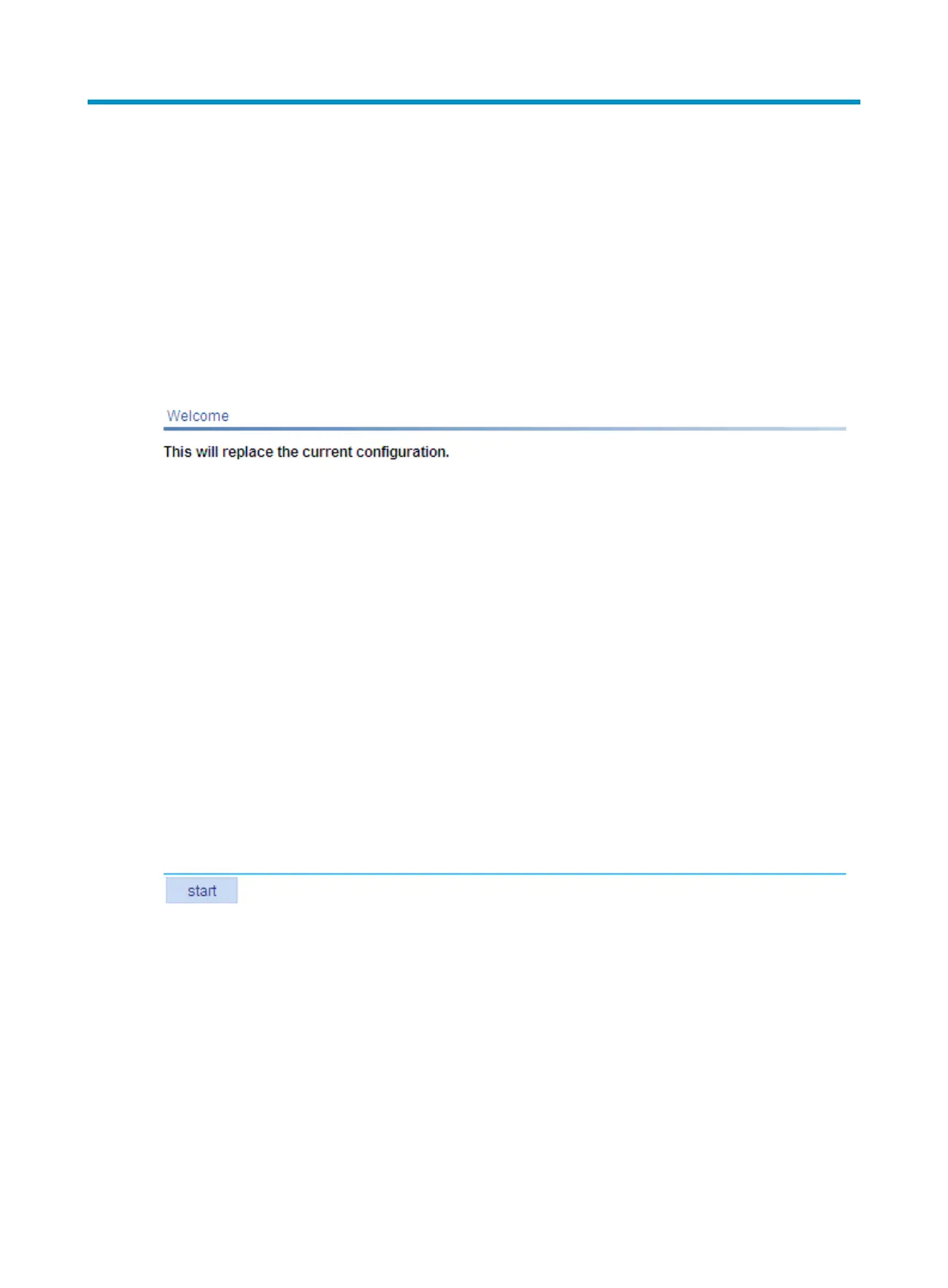

Figure 1 Home page of the Quick Start wizard

Basic configuration

1. On the home page of the Quick Start wizard, click start.

The basic configuration page appears.
