Ping operation
IPv4 ping operation
1. Select Diagnostic Tools > Ping from the navigation tree to enter the IPv4 Ping configuration page.
2. Click the expansion button before Advanced Setup to display the configurations of the advanced
parameters of IPv4 ping operation, as shown in Figure 156.

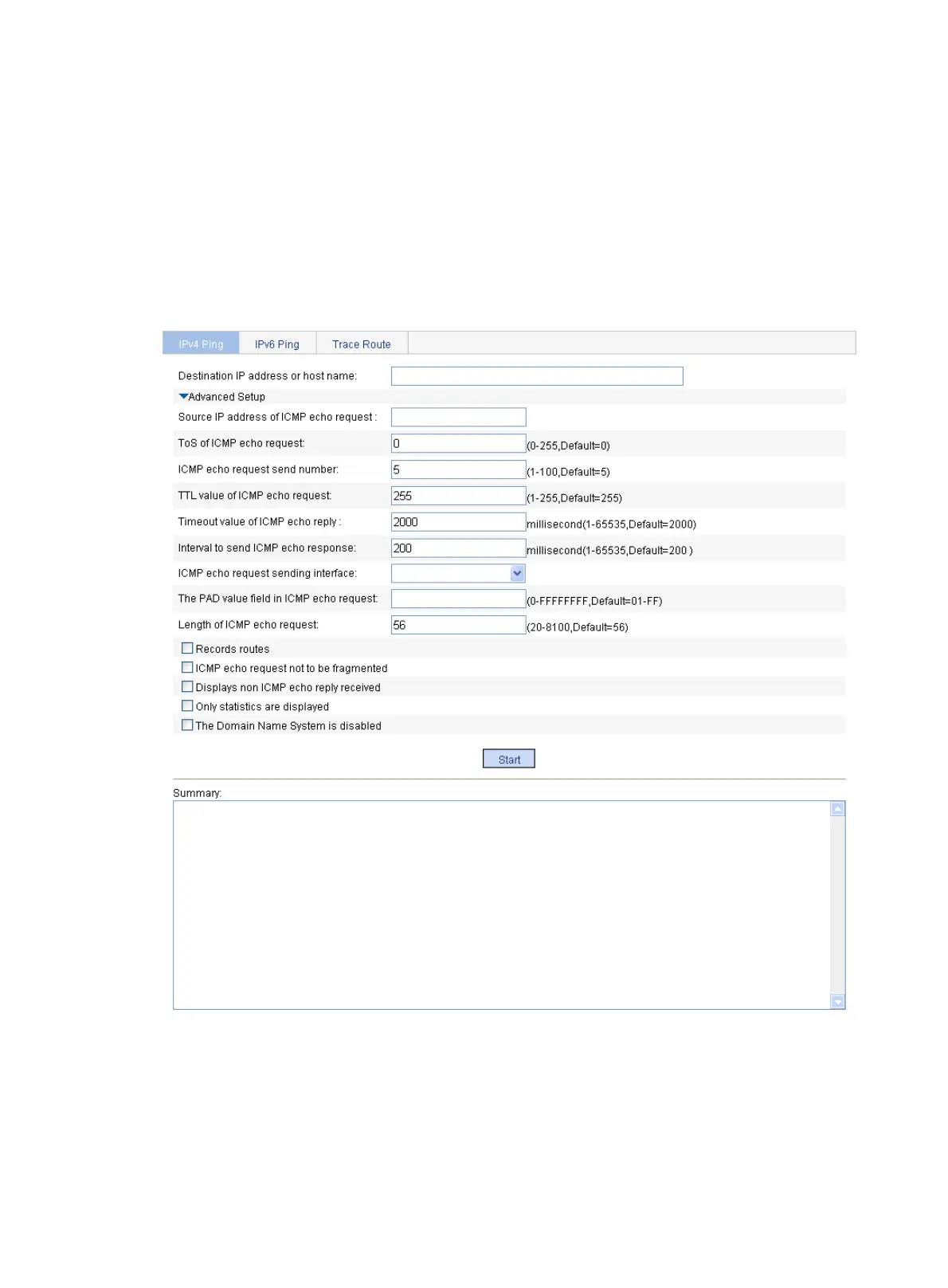

Figure 156 IPv4 ping con
figuration page
3. Enter the IPv4 address or host name of the destination device in the Destination IP address or host
name field.
4. Set the advanced parameters for the IPv4 ping operation.
5. Click Start to execute the ping command.
6. View the result in the Summary field.
