210
Item Descri
tion
Key
Specify the shared key for communication with the RADIUS server.
If no shared key is specified here, the shared key specified in the common
configuration part is used.
Confirm Key
RADIUS configuration examples
Network requirements
As shown in Figure 204, a RADIUS server running on IMC uses UDP ports 1812 and 1813 to provide
authentication and accounting services respectively.
Configure the AP to use the RADIUS server for Telnet user authentication and accounting (recording the
online duration of the Telnet user), and to remove the domain name from a username before sending the
username to the server.
On the RADIUS server, configure a Telnet user account with the username hello@bbb and the password
abc, and set the EXEC privilege level to 3 for the user.
Set the shared keys for packet exchange between the AP and the RADIUS server to expert.

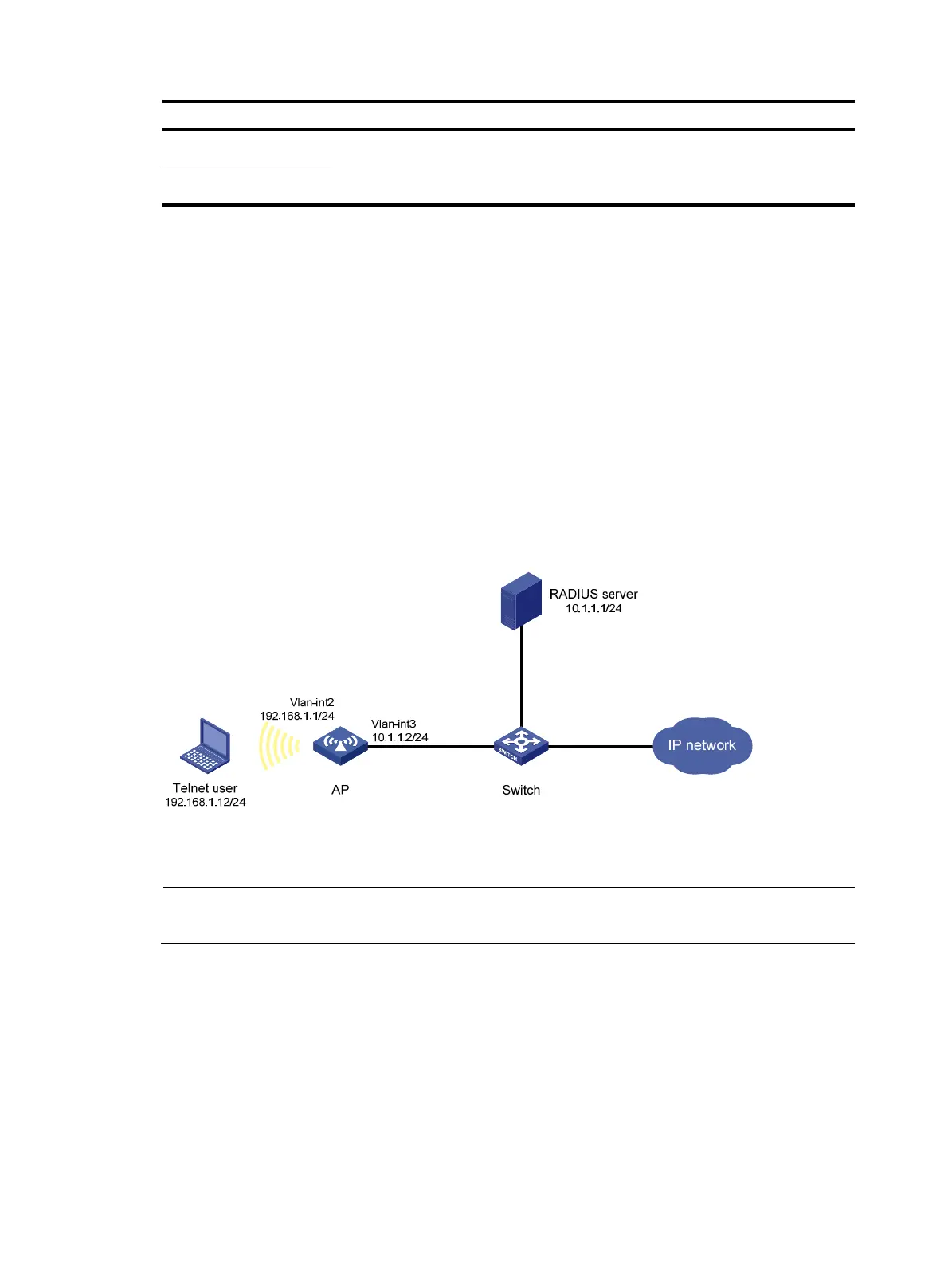

Figure 204 Network diagram
Configuring the RADIUS server (running on IMC)
NOTE:
This example assumes that the server runs IMC PLAT 3.20-R2606 and IMC UAM 3.60-E6206.
1. Add the AP to IMC as an access device:
a. Log to IMC and click the Service tab.
b. Select Access Service > Access Device from the navigation tree.
c. Click Add to enter the access device configuration page, as shown in Figure 205.
d. Set the shared key for auth
entication and accounting to expert.
e. Set the ports for authentication and accounting to 1812 and 1813 respectively.
f. Select the service type Device Management Service.
g. Select the access device type H3C.
To Next Page
