192

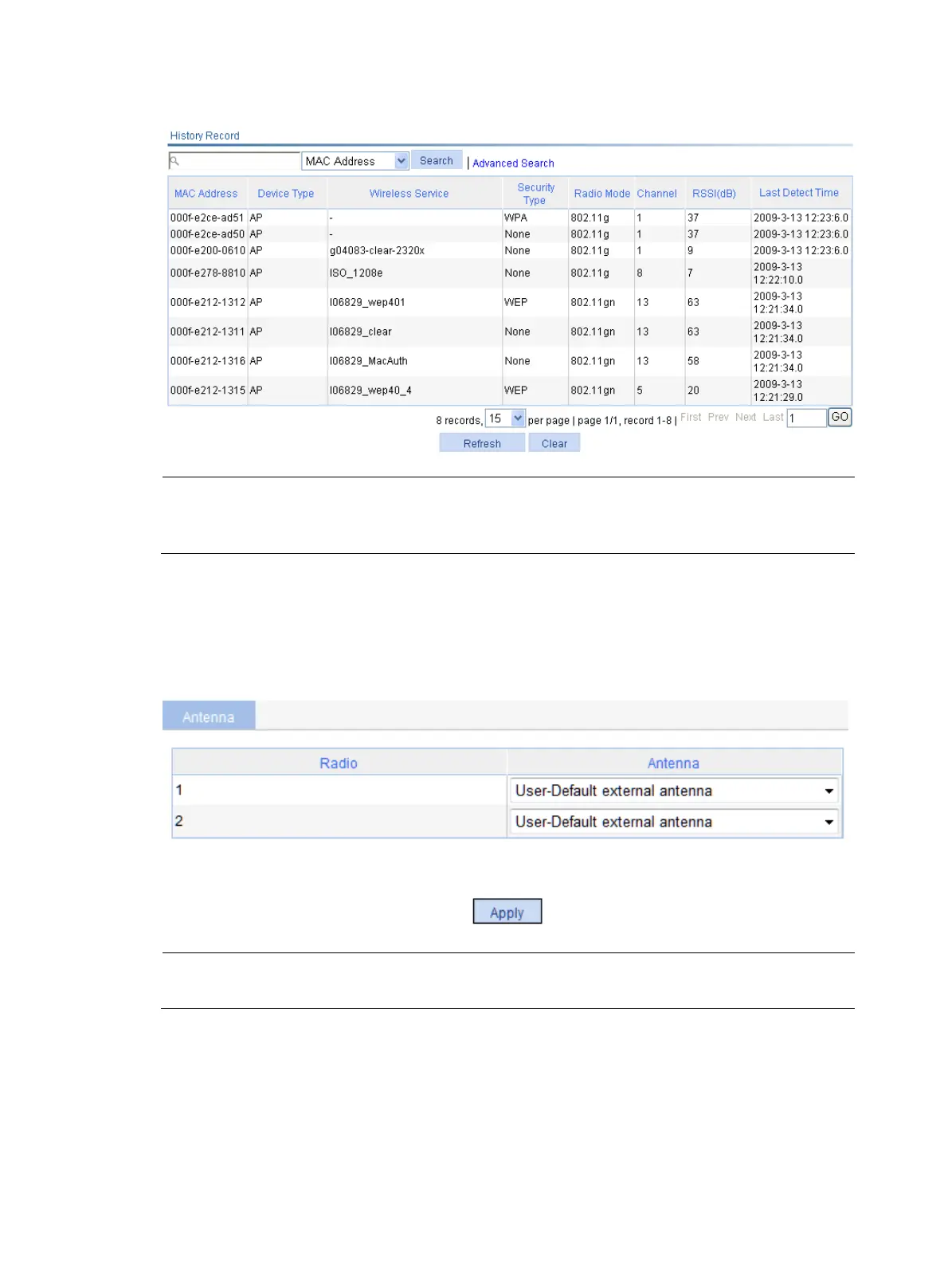

Figure 188 Displaying history record

NOTE:

If an entry in the detection record is not refreshed within the aging time, it is deleted from the detection

record and added into the history record.

Antenna

Select Radio > Antenna to select an appropriate antenna for the corresponding radio.

Figure 189 Selecting an antenna

NOTE:

ll types of antennas supported by the correspondin

radio mode are listed in the Antenna list.
