H3C WA Series User Manual

294

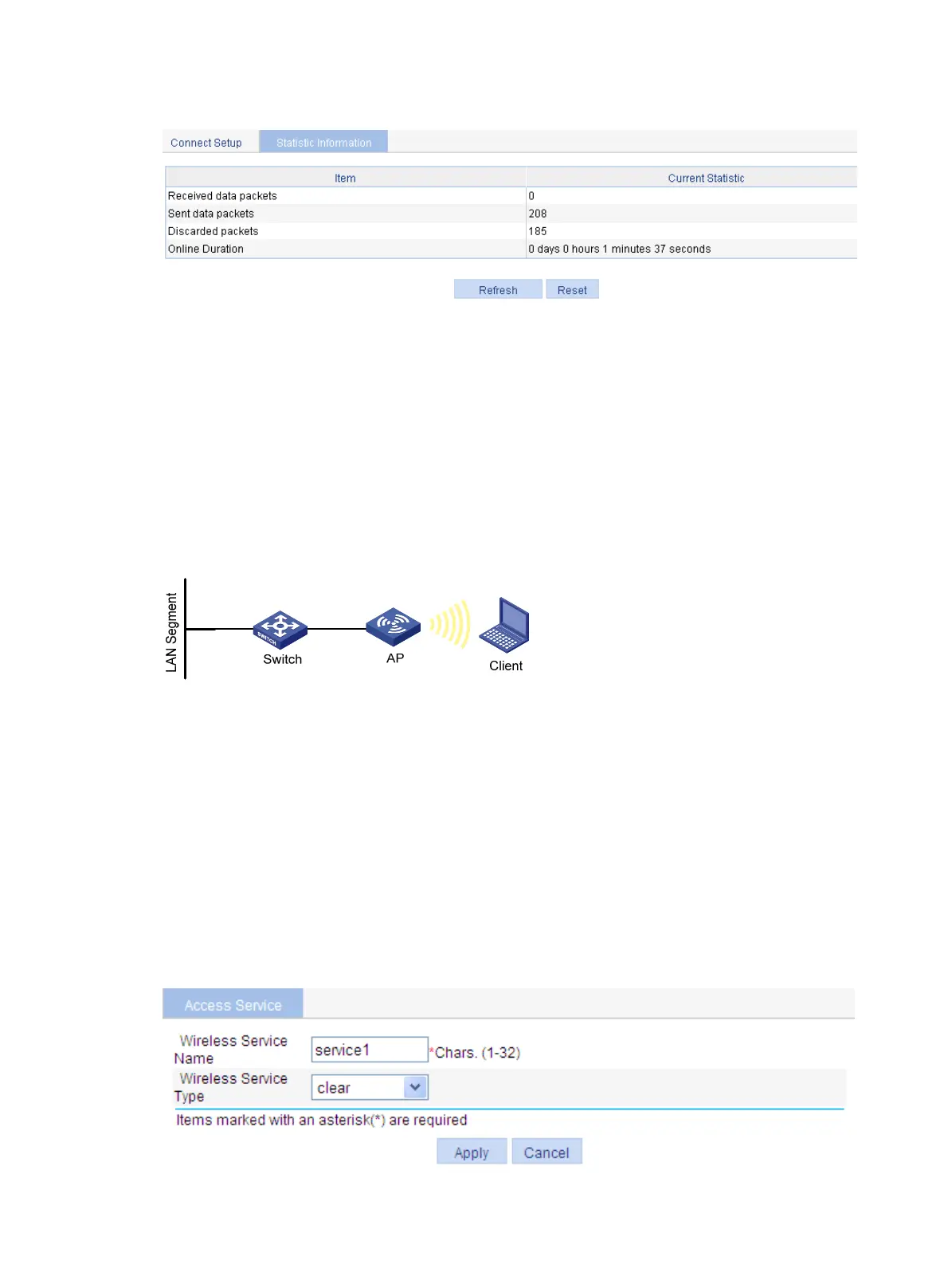

Figure 293 Display statistics
Wireless access configuration examples
Wireless service configuration example
Network requirements
As shown in Figure 294, enable the client to access the internal network resources at any time. The AP
provides plain-text wireless access service with SSID service1.
Figure 294 Network diagram
Configuring the AP
1. Assign an IP address to the fat AP:
a. Select Network > VLAN to create a VLAN on the fat AP.
b. Select Device > Interface Management to assign an IP address to the VLAN interface.
2. Configure a wireless service:
a. Select Wireless Service > Access Service from the navigation tree.
b. Click Add.
c. On the page that appears, enter the service name service1, select the wireless service type
clear, and click Apply.
Figure 295 Create a wireless service
