423

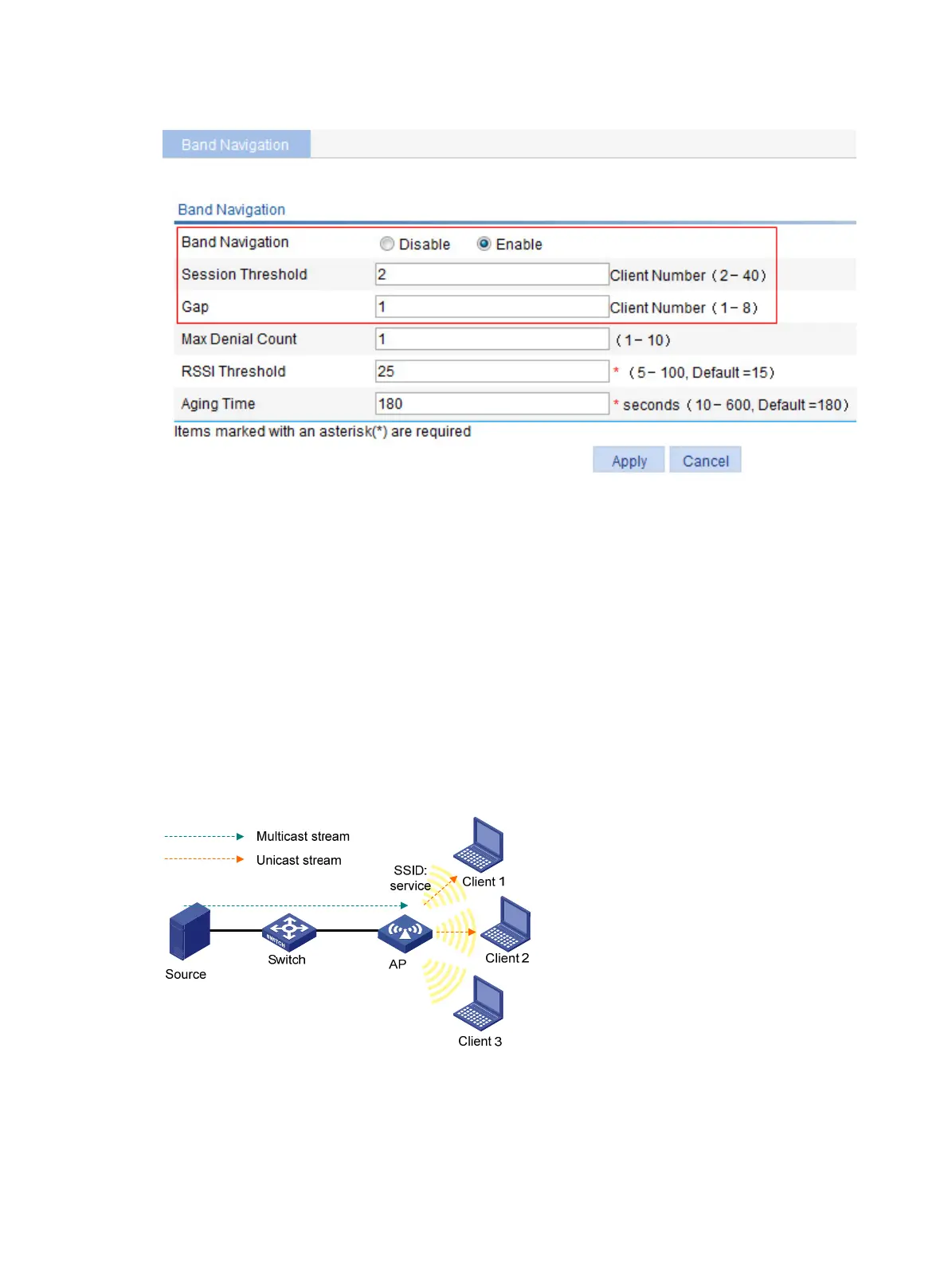

Figure 457 Configuring band navigation
Verifying the configuration
Client 1 and Client 2 are associated to the 5 GHz radio of the AP, and Client 4 can only be associated
to the 2.4 GHz radio of the AP. Because the number of clients on the 5 GHz radio has reached the upper
limit 2, and the gap between the number of clients on the 5 GHz radio and 2.4 GHz radio has reached
the session gap 1, Client 3 will be associated to the 2.4 GHz radio of the AP.
Multicast optimization configuration example
Network requirements
As shown in Figure 458, enable multicast optimization for the AP to convert multicast packets to unicast
packets for up to two clients.
Figure 458 Network diagram
Configuring the AP
1. Select Advanced > Multicast Optimization from the navigation tree.
2. Set the Aging Time to 300 seconds, the Multicast Optimization Max Clients to 2, and Max Client
Limit Exceeded Action to Exclude New Clients for Multicast Optimization.
